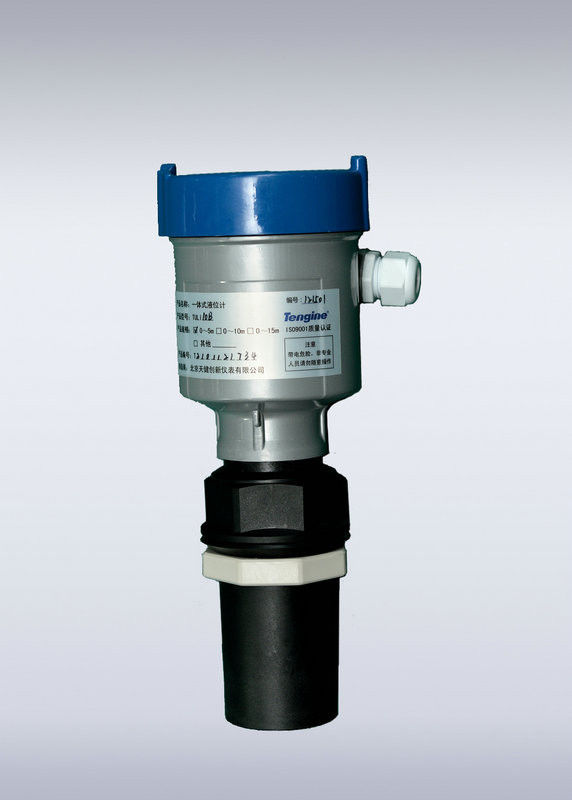

10m Ultrasonic Level Meter / Ultrasonic Level Difference Meter - TUL20AC- TUL-S10C10
1. Application
Water and wastewater treatment: Pump house, water collection well, biochemical reaction basin, sedimentation basin , mud storage pool, etc.
Electric power, mine: Ash slurry pond, coal slurry pond, water treatment
2. Features and Benefits
• Stable and accurate sensors are adapted for bad working condition
• Advance algorithm can effectively overcome environmental interference, like foam, panting, etc.
• Excellent piezoelectric ceramic materials and acoustic matching technology are efficiently
• Transducer built-in temperature sensor realized real-time automatic temperature compensation
• Program control automatic launch energy adjustment gives consideration to both wide range and small blind zone
• Blind zone also can be artificial setting, and shielding interference signal nearby the sensor
• LCD can display measuring result by figures and graphs
• User-friendly
• 4~20mA isolated current output, Profibus DP interface is alternative
• Control relay output, alarm reply output
3. Specifications
|
Performance characteristics
|
|
Measuring Range
|
0~5m, or 0~10m, 0~15
|
|
Blind Zone
|
0.3m, 0.4m, 0.6m
|
|
Beam Angle
|
7°
|
|
Resolution
|
0.001m
|
|
Accuracy
|
±0.2% FS
|
|
Stability
|
0.1% accuracy in 12 months
|
|
Temperature Compensation
|
Automatic Temperature Compensation (ATC)
|
|
Calibration
|
Factory calibrated, also can be calibrated by customer on site
|
|
Display
|
LCD displays data including date, time, and measurement value
|
|
Outputs
|
|
Analog Outputs
|
4-20 mA output( maximum 500 ohms)
|
|
Relay outputs
|
4 Relays
|
|
Relay capacity
|
2A, 250VAC
|
|
Digital Communication
|
MODBUS RS232/RS485,Profibus DP is optional
|
|
Power supply
|
|
AC power supply
|
220 VAC±10%, 50Hz
|
|
DC power supply
|
24 VDC ±10%
|
|
Physical parameters
|
|
Dimensions of Level Meter Transmitter
|
182×157×121mm
|
|
Dimensions of Level Difference Meter Transmitter
|
231×185×119mm
|
|

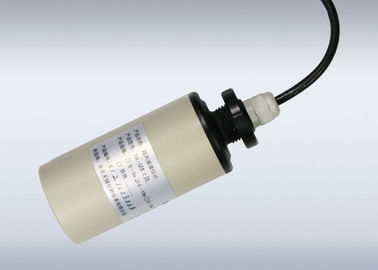

Dimensions of Sensor
|
Φ63×130mm, Φ76×170mm
|
|
Materials
|
--Transmitter: PC
--Sensor: Polyester
|
|
Process connection of sensor
|
M20×1.5, male thread
|
|
Length of Sensor’s Cable
|
10m, Shielded cable (other length could be ordered)
|
|
Environmental conditions
|
|
Ingress protection
|
--IP65 (Transmitter)
--IP68 (Sensor)
|
|
Operating Temperature
|
--Transmitter: -20 ~ 60℃
--Sensor: -40 ~ 80℃
|
|
Operating Pressure
|
≤10Bar
|
4. Ordering Information
|
Ordering Information
|
|
Transmitter Selection
|
|
|
Channel number
|
Signal output
|
Power version
|
|
TUL
|
|
|
|
|
|
code
|
meaning
|
code
|
meaning
|
code
|
meaning
|
|
|
1
|
Level meter
|
0
|
4~20mA
|
AC
|
220VAC
|
|
|
2
|
Level difference meter
|
1
|
RS 485(Modbus)
|
DC
|
24VDC
|
|
|
|
|
2
|
Profibus DP
|
|
|
|
Example
TUL 10AC, refer to ultrasonic level meter transmitter, output 4~20mA, 220V AC Power Supply.
|
|
Sensor Selection
|
|
|
Measuring range
|
Cable length
|
|
TUL-S
|
|
|
|
|
code
|
meaning
|
code
|
Meaning
|
|
|
05
|
5m range
|
C10
|
10m cable
|
|
|
10
|
10m range
|
CXX
|
XXm cable
|
|
|
15
|
15m range
|
|
|
|
Example
TUL-SO5C10, refer to 5m range level meter sensors, with 10m cable.
|
(3) Accessories
FA0100: Wall mount bracket, stainless steel
FA0101: Wall mount bracket, carbon steel
FA0800: Instrument protective housing, stainless steel
FA0810: Instrument protective housing, stainless steel, with heater unit
