Woltman Water Meter WS-50-150

Name: Woltman Water Meter WS-50-150
Brand: YJ
SKU: WS-50-150
Rating: 4.8 (138 reviews)

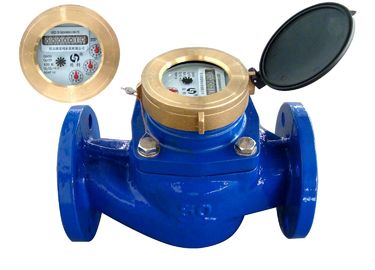

Large Image : Woltman Water Meter WS-50-150

Product Details:

Place of Origin:	China
Brand Name:	YJ
Model Number:	WS-50-150

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Packaging Details:	1pc/inner carton 10pcs/outer carton
Delivery Time:	30 days

Contact Now

Detailed Product Description

Highlight:

Woltman Water Meter

cold water meter

Specifications

Woltman cold water meter
Measuring the volume of cold water passing through the pipeline.

Woltman cold water meter

APPLICATION
Measuring the volume of cold water passing through the pipeline.

FEATURES
Dry type, magnetic drive, wide measurement range, accurate measurement at low flow rate, high sensitivity, low pressure loss and long working life, can be installed both horizontally and vertically etc.

WORKING CONDITION
Water temperature≤40 Water pressure ≤ 1.0MPa(1.6MPa for option)

COMPLIANCE WITH STANDARDISO 4064

Maximum permissible error

(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%.

(2) in the upper zone from qt inclusive up to and including qs is ±2%;

MAIN TECHNICAL SPECIFICATIONS

Type	Size (mm)	Class	qs Overload Flow	qp Permanent Flow	qt Transitional Flow	qmin Min. Flow	Min. Reading	Max. Reading
			m3/h				m3
WS -50	50	A	30	15	4.5	1.2	0.01	9.999,999
		B			3.0	0.45
WS -80	80	A	80	40	12	3.2	0.01	9,999,999
		B			8.0	1.2
WS -100	100	A	120	60	18	4.8	0.01	9,999,999
		B			12	1.8
WS -150	150	A	300	150	45	12	0.01	9,999,999
		B			30	4.5

DIMENSIONS

Type	Size		L Length		H Height	Connecting flange
						φD1 Outside diameter	φD2 Bolt circle diameter	Connecting Bolts (n-M)
	mm
WS -50	50	200		261		165	125	4-M16
WS -80	80	200		271		185	145	4-M16
WS -100	100	225		279		200	160	8-M16
WS -150	150	250		289		220	180	8-M16
