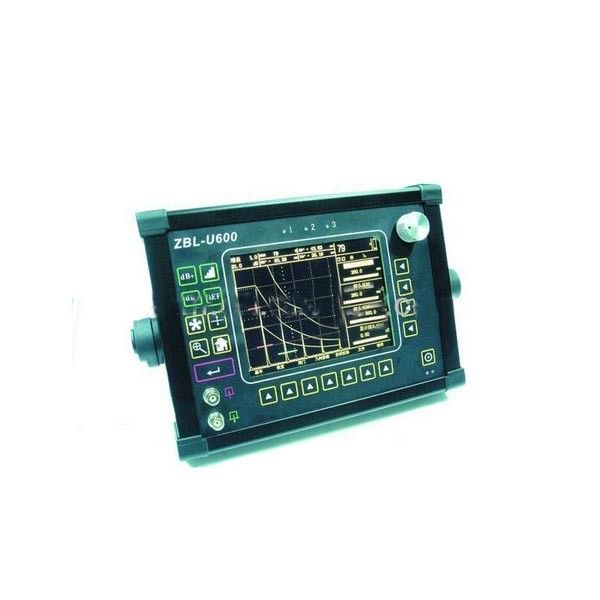

U600 digital ultrasonic flaw detector (defects detector)

Product Introduction

Product Name: U600 digital ultrasonic flaw detector (defects detector)

Company Name: Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.

Introduction

U600 is used to examine the internal defects of various materials such as steel, copper, aluminum, hard alloys, castings, poly methyl methacrylate, composite materials, weld joints, etc. This device can detect defects such as holes, cracks, loosening, impurities, incomplete penetration, etc. This instrument is practical and portable, and it can be used in a variety of fields such as aerospace, military industry, chemical industry, electronics, iron & steel, metallurgy, railroad, train, automobile, motorbike, machinery, security checking, pipelines, general construction, etc.

Features

1)High resolution color LCD display with echo dynamic simulation real-time measuring system.

2) Reference waveform and on site A scan are displayed simultaneously in different colors, facilitates the analysis of tests results.

3)400kHz – 20 MHz frequency range. The frequency can be adjusted to suit the appropriate requirements and enables optimized performance.

4) 15Hz – 1500 Hz pulse repetition frequency eliminates virtual image echo, and effectively eliminates the long acoustic wave during material testing.

5)Operators can choose displayed information according to their needs.

6)Multi-curve DAC adjusts distance error or amplitude caused by material deficiency.

7)4 optional color themes with adjustable brightness.

4 optional attenuation settings (50,75,150, and 1,000), to optimize transducer performance.

8)Auto-adjust setting makes the operation simpler.

9)dB step length function with 6 gain knob incremental ,1 locking incremental.

10)Save and preview data sets with A scanning, enables fast recovery of data and instrument settings.
