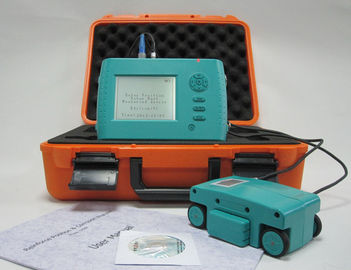

Concrete Non Destructive Testing Equipment Scan Type Rebar Locator 6mm - 50mm

Rebar detector, Rebar locator, Rebar cover meter, Rebar protective layer thickness tester, Rebar corrosion detector, Non destructive testing equipment

Description

The tester is used to perform the rebar inspection inside the concrete building, it can test the diameter, position, distribution and concrete protection layer thickness. Powerful Windows software built-in, 6kinds of inspection report can be generated.

Standards compliance: JGJ/T 152-2008

Technical specifications

1. Rebar diameter test range:φ 6-50mm

2. Protection layer thickness range:

1^st range: 6-90mm; 2^ndrange: 7-180mm

3. protection layer thickness max allowed error

1^st range: 6-59:±1;  60-69: ±2; 70-90: ±4

2^nd range: 7-79: ±1 80-119: ±2 120-180: ±4

4. diameter tested range: 6-50mm

5. diameter testing max allowed error: ±1mm

6. Working environment requirements: ambient temperature: -10-40℃; RH<90%

7. Power supply mode: 6 pcs AA alkaline battery, power-on time over than 30 hours
