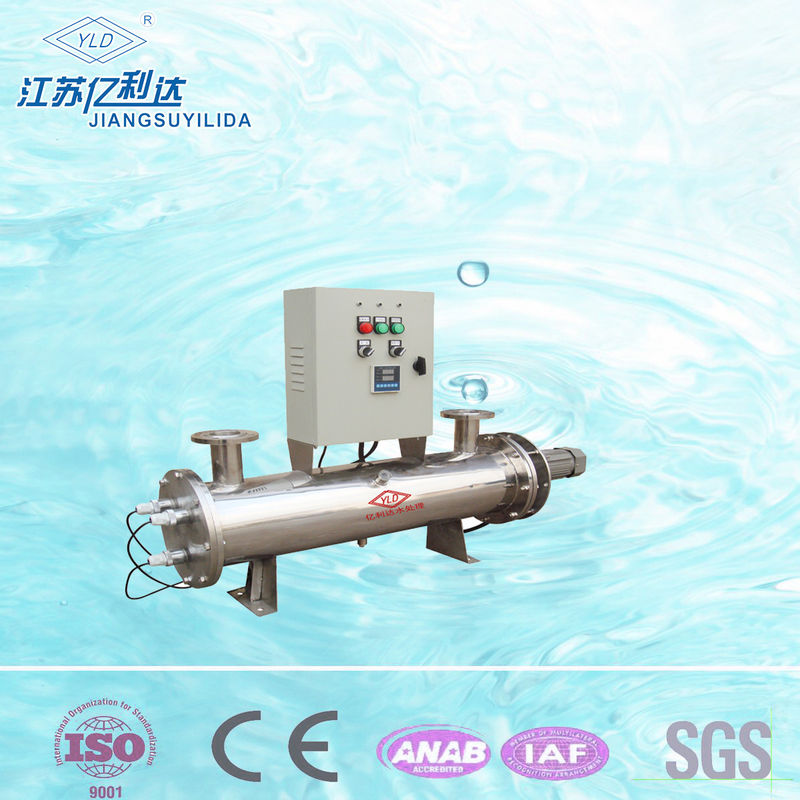

15TPH 200w Led Ultrviolet Sterilizer for Medical Equipment No Secondary Pollution

15TPH 200w Led Ultrviolet Sterilizer for Medical Equipment No Secondary Pollution

What is UV Sterilizer?

An ultraviolet (UV) sterilizer uses ultraviolet germicidal irradiation (UVGI) as a sterilization method to

break down microorganisms including pathogens, viruses and molds. Theultraviolet rays work to

destroy microorganisms' DNA, thus disrupting their ability to reproduce and effectively killing them.

Of the three types of UV — UV-A, UV-B and UV-C —UV-C light is the one used in UV sterilizers.

UV-C contains germicidal UV within its spectrum, measured at a wavelength of 254 nanometers (nm).

UV-C is shortwaveultraviolet radiation, compared to longwave UV-A and UV-B, and is the type of UV capable of causing the breakdown of the molecular bonds in microorganisms' DNA.

Working principle

UV water disinfection system design has been carefully conceived to provide adequate germicidal

dosage throughout the disinfection chamber. The dosage, as it applies to UV disinfection, is a function

of time and the intensity of UV radiation to which the water is exposed. Exposure time is related to the

flow rate, the higher the flow rate, the lower the exposure time or the lower the flow rate, the higher the exposure time. The UV intensity is the amount of energy, per unit time, emitted by germicidal lamp.

The Dosage is the product of UV intensity and the exposure time.

Advantages:

High—efficiency sterilization

Sterilization of cell viruses with UV C is generally within one second. In comparison, the traditional UV and Cl and Ozone Methods takes 20 min to one hour to match the effect of UVC.

No secondary pollution

As the UV-c Technology can be controlled within the scope of killing the bacteria or viruses only and it is unnecessary to add any chemicals, it Operation complexity Simple to middle grade Simple to middle grade will not cause the secondary pollution to the water body and the surround environment. Meanwhile, it will not change any component of the water.

It makes continuous mass sterilization possible.

The modern UV-C disinfection equipment can work 24 hours a day and 365 days a year. Except for the general maintenance within the fixed time, the optimum operation condition is the 24-hour continuous operation.

Operation and maintenance is simple and easy and of low cost.

With the improvement of UV-C core technology, the UV-C disinfection technology is not only the means of the highest disinfection rate of all the disinfection methods but also the simplest and easiest in operation and maintenance and of the lowest cost, reaching RMB 0.004 Yuan/T of water. Therefore, cost performance ratio is the highest of all the disinfection technologies. It has the high efficiency advantage superior to other sterilization technologies but also is the lowest in cost and expenses for operation and maintenance.

Safe and Reliable Operation

In terms of the traditional sterilization technology, like the methods of using the chloride or ozone, the disinfectant itself is highly toxic, flammable and explosive. Application of these substances causes latent threat to the site operators, the surrounding environment and the nearby residents. The modern ultraviolet disinfection system, however, does not bear such potential risks.

Applications:

UV sterilizers have a variety of applications in various industries. Some of their uses include air sterilization, water sterilization, and the sterilization of aquariums and ponds.UV sterilizer usage is also common in food and beverage production, medical sanitation and other sterile work facilities, such as laboratories.

FAQ:

01. What is the source of raw water to be treated?

-- is it underground water or well water? or river water ,other source?

02. What is the capacity(m3/hour) you required for this sterilizer?

-- most IMPORTANT requirement.

03. What will the treated water be used for?

--for human drinking or industry purpose?

04. What is the power supply in your country?

   220V/60Hz or other?
