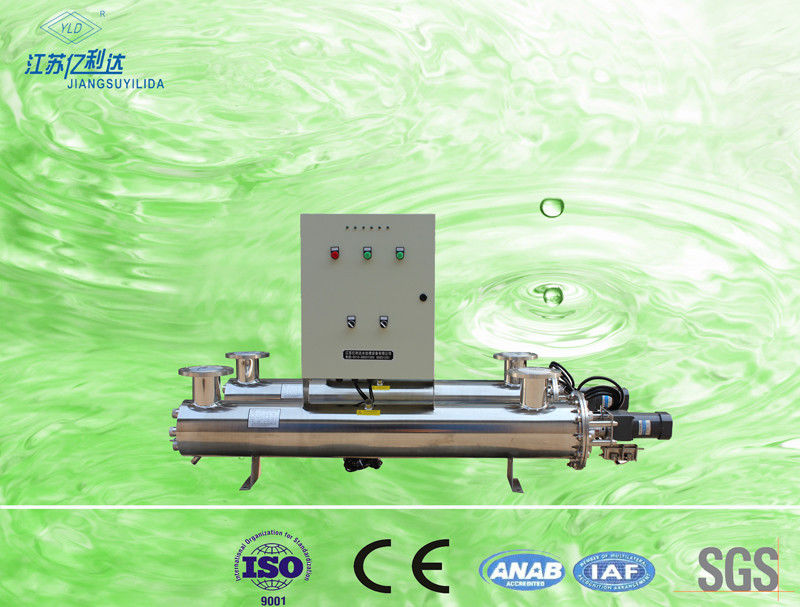

High Intensity UV Lamp Sterilizer Water Purifier For Drinking Water Disinfection
UV Water Disinfection System For Pure Water
UV Sterilizers
UV Water Sterilization technology seeks to use the same process as nature to provide water that is
completely safe. In nature, the Sun produces UV rays which have a germicidal effect on disease causing
pathogens in water. When these contaminants are exposed to UV light, they are rendered harmless and
the output water is considered disinfected.
Our ultra violet water purification systems kills 99.9% of all bacterial contaminants, and provides clean,
safe drinking water, far exceeding Health Department standards for potable water.
UV water sterilizers use several stages of filter to remove sediments down to 5 microns removing
particulates. A second stage carbon filter removes odors and particles down to 0.5 microns. The UV
light stage saturates the water with high dose UV light at wavelengths that kill pathogens. Together the
UV water sterilizer system is excellent for quality of construction, and effectiveness in treating your water
to remove unwanted and unsafe elements. The UV water treatment system is ideal for homes, businesses,
and remote sites.
Working principle:
The device adopts a special high strength non ozone ultraviolet sterilizing lamp and stainless steel barrel body odor whose inner wall specially treated by micro carbon martensite, outer side of the barrel body with a special polishing processing, then the pretreated water flows in the tube, it will receive enough line volume of ultraviolet irradiation 253.7nm, which shows excellent germicidal efficacy, but also effectively reduces the influence on ultra pure water.
Optimal service condition:
As UV is a short- wavelength light wave, it has low radiant energy and weak penetrating power and can only kill the microorganisms it directly radiates on. Therefore, in order to enhance the bacteria-killing efficiency and ensure the security of drinking water, the incoming water into the sterilizer must meet the following standard, (and if exceeding the following standard, the killing efficiency may be affected).
|
Total iron content
|
Less than 0.3ppm(0.3mg/L)
|
|
H2S
|
Less than 0.05ppm(0.05mg/L)
|
|
Total suspended matter
|
Less than 10 mg/L
|
|
Manganese content
|
Less than 0.05 mg/L
|
|
Water hardness
|
Less than 120 mg/L
|
|
Chroma
|
Less than 15centigrade
|
|
Water Temp.
|
5-60Centigrade
|
|
PH value
|
6.5-8
|
|
Interface type
|
flange or thread
|
Product features:
1. SS304 or SS316 stainless steel reactor.
2. Quartz sleeve to ensure the best working temperature.
3. Comprehensive sterilization, efficient and fast, sterilization rate is up to 99.9%.
4. High output, physical sterilization, without negative effects, without secondary pollution.
5. Full stainless steel shell, adopts European technology, smooth inner wall, without blind zone.
6. Equipment is cleaning and polishing, applicable to high purifying environment.
7. The electrical device is configured to apply in the market around the world.
8. Has special design, and operates very conveniently.
|
model
|
capacity
|
Power
|
inlet-outlet
|
reactor
|
panel
|
Anchor
|
G weight
|
|
|
m³/hour
|
watt
|
mm
|
L×W×H
|
cm
|
screw
|
Kg
|
|
YLCn-005
|
0.3
|
16
|
1/2″
|
30×6×11
|
without
|
without
|
5
|
|
YLCn-008
|
1
|
25
|
1/2″
|
47×6.3×11
|
without
|
without
|
10
|
|
YLCn-050
|
2
|
40
|
1″
|
100×9×20
|
Φ8.9×25
(d×L)
|
69×4×Φ1
|
25
|
|
YLCn-150
|
6
|
80
|
1+1/4″
|
100×11×23
|
|
69×4×Φ1
|
30
|
|
YLCn-200
|
8
|
120
|
1+1/2″
|
100×15.9×30
|
Φ8.9×45
(d×L)
|
69×7×Φ1
|
35
|
|
YLCn-300
|
12
|
160
|
2″
|
100×15.9×32
|
|
69×7×Φ1
|
40
|
|
YLC-050
|
2
|
40
|
DN25/1″
|
100×8.9×30
|
25×30×12
(W×H×D)
|
60×4×Φ1
|
45
|
|
YLC-150
|
6
|
80
|
DN32/11/4″
|
100×10.8×30
|
|
60×4×Φ1
|
50
|
|
YLC-200
|
8
|
120
|
DN40/11/2″
|
100×15.9×40
|
|
60×7×Φ1
|
60
|
|
YLC-300
|
12
|
160
|
DN50/2″
|
100×15.9×40
|
|
60×7×Φ1
|
70
|
|
YLC-360
|
15
|
200
|
DN65/21/2″
|
100×15.9×40
|
|
60×7×Φ1
|
120
|
|
YLC-500
|
20
|
240
|
DN65/21/2″
|
100×21.9×50
|
|
60×11×Φ1.2
|
130
|
|
YLC-600
|
25
|
280
|
DN80/3″
|
100×21.9×50
|
|
60×11×Φ1.2
|
140
|
|
YLC-700
|
30
|
320
|
DN100/4″
|
100×21.9×50
|
|
60×11×Φ1.2
|
150
|
|
YLC-1000
|
40
|
360
|
DN100/4″
|
100×21.9×50
|
|
60×11×Φ1.2
|
160
|
|
YLC-1200
|
50
|
400
|
DN125/5″
|
100×21.9×50
|
|
60×11×Φ1.2
|
180
|
|
YLC-1500
|
60
|
420
|
DN150/6″
|
170×27.3×57
|
|
120×16×Φ1.4
|
210
|
|
YLC-2000
|
80
|
560
|
DN150/6″
|
170×27.3×57
|
|
120×16×Φ1.4
|
220
|
|
YLC-2500
|
100
|
700
|
DN150/6″
|
170×27.3×57
|
60×128×30
(W×H×D)
|
120×16×Φ1.4
|
275
|
|
YLC-3000
|
125
|
840
|
DN150/6″
|
170×27.3×57
|
|
120×16×Φ1.4
|
300
|
|
YLC-4000
|
150
|
1120
|
DN200/8″
|
173×32.5×65
|
|
120×20×Φ1.6
|
325
|
|
YLC-5000
|
200
|
1400
|
DN200/8″
|
173×37.7×72
|
|
120×22×Φ1.6
|
350
|
|
YLC-7000
|
300
|
2100
|
DN250/10″
|
175×42.6×80
|
|
120×24×Φ2.0
|
400
|
|
YLC-10K
|
400
|
2520
|
DN250/10″
|
176×52.9×95
|
60×150×40
(W×H×D)
|
120×22×Φ2.2
|
475
|
|
YLC-15K
|
600
|
3080
|
DN300/12″
|
176×78×110
|
|
120×32×Φ2.4
|
600
|
|
YLC-20K
|
800
|
3920
|
DN350/14″
|
Designated
|
Designated
|
Designated
|
Designated
|
|
YLC-25K
|
1000
|
4760
|
DN350/14″
|
Designated
|
Designated
|
Designated
|
Designated
|
FAQ:
01. What is the source of raw water to be treated?
-- is it underground water or well water? or river water ,other source?
02. What is the capacity(m3/hour) you required for this sterilizer?
-- most IMPORTANT requirement.
03. What will the treated water be used for?
--for human drinking or industry purpose?
04. What is the power supply in your country?
220V/60Hz or other?
