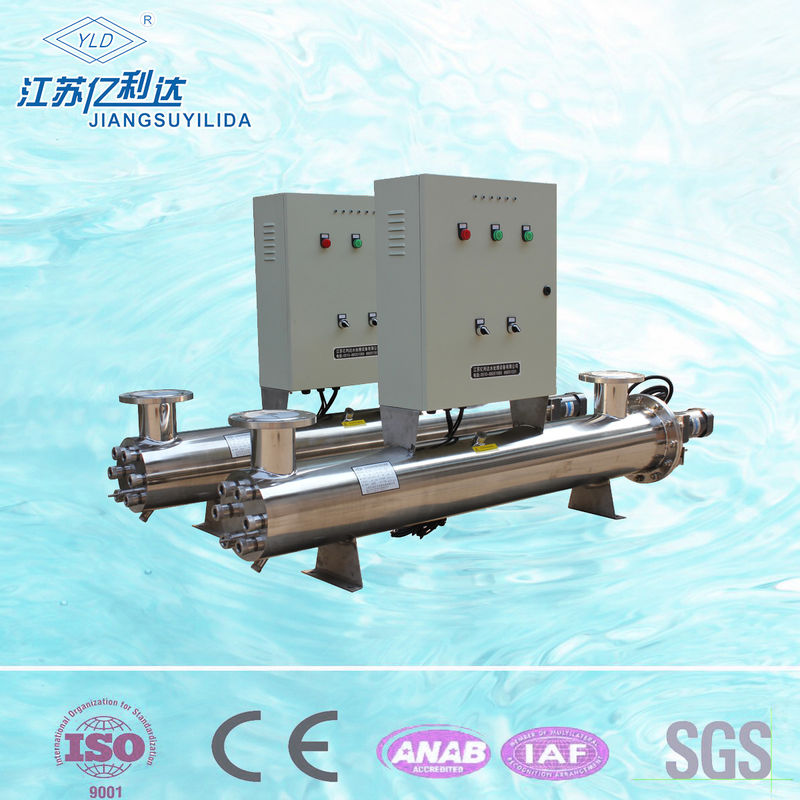

6TPH 80W Fish Tank UV Water Sterilizer For Water Purifying Treatment
Specifications:
|
Model
|
YLCn-150
|
|
Flow rate(T/H, m3/h)
|
6T/H
|
|
Power(W)
|
80W
|
|
Inlet and outlet diameter
|
1+1/4"
|
|
Dimension of control cabinet(cm)
|
(D)8.9*25
|
|
material
|
stainless steel 304/316
|
|
UV lamp tube
|
Quartz glass
|
|
Sterilizing rate
|
99.9%
|
|
power supply
|
can be customized
|
|
Lamp life
|
9000hours
|
Advantages:
1. High efficient sterilization:
Normally kill 99-99.99% bacteria within 1 to 2 seconds.
2. Broad spectrum:
UV rays has broadest spectrum, can kill almost all bacteria and virus.
3. No secondary pollution:
Do not add any chemical, so can not create secondary pollution to water and ambient environment, and do not change any ingredient in water.
4. Safe and reliable operation:
Traditional disinfection technologies, such as chloride or ozone, which disinfection agent itself are highly toxic and flammable material while UV sterilizer has no such potential safety hazard.
5. Low maintenance cost:
UV sterilizer occupies a small area; structure requirement is simple, so total investment is smaller. Lower in operation, it costs only half than that chlorine disinfection in kiloton water treatment.
Applications:
Reclaimed water recycling
Devices for secondary water supply of the living community
Disinfection of the treated municipal sewer
Disinfection of water for aquiculture and processing
Disinfection of purified water for shellfish species
Disinfection of water in aquaria and water tanks
Disinfection of tap water, purified water and mineral water
Disinfection of water for the food and beverage industries_
Disinfection of water for such water recreational facilities as swimming poor, etc. Disinfection of
drinking water for residential, office and restaurant buildings, etc. Disinfection of bacteria-free
water for pharmacy, cosmetics and other such manufacturing industries
Disinfection of water for hospitals Water for military bases, ships and vessels and submarine
vessels as well as field activities
Disinfection of water for agricultural irrigation
Disinfection of water for municipal landscapes
Disinfection of water for the water treatment system of central air conditioning in commercial buildings
Disinfection of cooling water for various large power stations
Disinfection of drinking water for commercial planes and large passenger planes Disinfection of water
for large poultry and livestock farms
Disinfection of water for small domestic drinking machine
Greenhouse seedling culture Aquaculture
Water for municipal landscapes
Disinfection of water for hospitals
Food and beverage
Parameters for more models:
|
Model
|
Amount of disinfectant
|
Power
(W)
|
Incoming and outcoming water pipes (Nominal/ British system)
|
System pressure resistance (Kg/cm²)
|
UV light fault Alarm
|
Dimension of the reactor (cm)
L×W×H
|
Dimension of the control cabinet
(cm)
|
Anchor screws
|
Transport weight(Kg)
|
|
YLCn-005
|
0.3
|
16
|
1/2″
|
6
|
Has
|
30×6×11
|
|
|
5
|
|
YLCn-008
|
1
|
25
|
1/2″
|
6
|
Has
|
47×6.3×11
|
|
|
10
|
|
YLCn-050
|
2
|
40
|
1″
|
6
|
Has
|
100×9×20
|
Φ8.9×25
(d×L)
|
69×4×Φ1
|
25
|
|
YLCn-150
|
6
|
80
|
1+1/4″
|
6
|
Has
|
100×11×23
|
69×4×Φ1
|
30
|
|
YLCn-200
|
8
|
120
|
1+1/2″
|
6
|
Has
|
100×15.9×30
|
Φ8.9×45
(d×L)
|
69×7×Φ1
|
35
|
|
YLCn-300
|
12
|
160
|
2″
|
6
|
Has
|
100×15.9×32
|
69×7×Φ1
|
40
|
|
YLC-050
|
2
|
40
|
DN25/1″
|
6
|
Has
|
100×8.9×30
|
25×30×12
(W×H×D)
|
60×4×Φ1
|
45
|
|
YLC-150
|
6
|
80
|
DN32/11/4″
|
6
|
Has
|
100×10.8×30
|
60×4×Φ1
|
50
|
|
YLC-200
|
8
|
120
|
DN40/11/2″
|
6
|
Has
|
100×15.9×40
|
60×7×Φ1
|
60
|
|
YLC-300
|
12
|
160
|
DN50/2″
|
6
|
Has
|
100×15.9×40
|
60×7×Φ1
|
70
|
|
YLC-360
|
15
|
200
|
DN65/21/2″
|
6
|
Has
|
100×15.9×40
|
60×7×Φ1
|
120
|
|
YLC-500
|
20
|
240
|
DN65/21/2″
|
6
|
Has
|
100×21.9×50
|
60×11×Φ1.2
|
130
|
|
YLC-600
|
25
|
280
|
DN80/3″
|
6
|
Has
|
100×21.9×50
|
60×11×Φ1.2
|
140
|
|
YLC-700
|
30
|
320
|
DN100/4″
|
6
|
Has
|
100×21.9×50
|
60×11×Φ1.2
|
150
|
|
YLC-1000
|
40
|
360
|
DN100/4″
|
6
|
Has
|
100×21.9×50
|
60×11×Φ1.2
|
160
|
|
YLC-1200
|
50
|
400
|
DN125/5″
|
6
|
Has
|
100×21.9×50
|
60×11×Φ1.2
|
180
|
|
YLC-1500
|
60
|
420
|
DN150/6″
|
6
|
Has
|
170×27.3×57
|
120×16×Φ1.4
|
210
|
|
YLC-2000
|
80
|
560
|
DN150/6″
|
6
|
Has
|
170×27.3×57
|
120×16×Φ1.4
|
220
|
|
YLC-2500
|
100
|
700
|
DN150/6″
|
6
|
Has
|
170×27.3×57
|
60×128×30
(W×H×D)
|
120×16×Φ1.4
|
275
|
|
YLC-3000
|
125
|
840
|
DN150/6″
|
6
|
Has
|
170×27.3×57
|
120×16×Φ1.4
|
300
|
|
YLC-4000
|
150
|
1120
|
DN200/8″
|
6
|
Has
|
173×32.5×65
|
120×20×Φ1.6
|
325
|
|
YLC-5000
|
200
|
1400
|
DN200/8″
|
6
|
Has
|
173×37.7×72
|
120×22×Φ1.6
|
350
|
|
YLC-7000
|
300
|
2100
|
DN250/10″
|
6
|
Has
|
175×42.6×80
|
120×24×Φ2.0
|
400
|
|
YLC-10K
|
400
|
2520
|
DN250/10″
|
6
|
Has
|
176×52.9×95
|
60×150×40
(W×H×D)
|
120×22×Φ2.2
|
475
|
|
YLC-15K
|
600
|
3080
|
DN300/12″
|
6
|
Has
|
176×78×110
|
120×32×Φ2.4
|
600
|
|
YLC-20K
|
800
|
3920
|
DN350/14″
|
6
|
Has
|
Designated
|
Designated
|
Designated
|
Designated
|
|
YLC-25K
|
1000
|
4760
|
DN350/14″
|
6
|
Has
|
Designated
|
Designated
|
Designated
|
Designate
|
FAQ:
01. What is the source of raw water to be treated?
-- is it underground water or well water? or river water ,other source?
02. What is the capacity(m3/hour) you required for this sterilizer?
-- most IMPORTANT requirement.
03. What will the treated water be used for?
--for human drinking or industry purpose?
04. What is the power supply in your country?
220V/60Hz or other?
Show photo:
