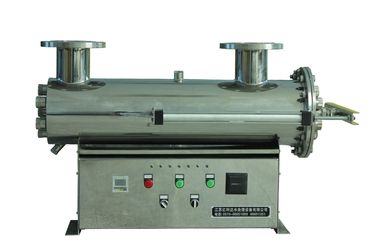

Countertop Water Filter UV Water Sterilizer / Sterilight UV System , Underneath Struture
Ultraviolet Water Purifiers
Ultraviolet (UV) water purification systems are thought to offer the most cost-effective way of protecting
residential drinking water against biological contaminants. UV purification
systems can be used to protect against water-borne viruses, bacteria, molds and pathogenic disease-causing microorganisms such as giardia and cryptosporidium. Even viruses such as the hepatitis
virus, which are known to be highly resistant to chlorine-treated water, can be relatively easily eliminated through UV treatment.
What does a UV sterilizer do?
A UV sterilizer is used to control infections by stopping the spread of microorganisms from one
fish/coral/invertebrate to another through the water. It is also used in pond applications to control
free-floating algae. When operated correctly, free-floating microorganisms will be killed by the UV light.
Note that the organisms must be in the water
that flows to the UV sterilizer. The UV light has no residual effect and will not kill organisms
attached to fish (e.g., adult stage of ich) or rocks (e.g., algae).
How do UV sterilizers work?
The UV sterilizer utilizes a germicidal fluorescent lamp that produces light at a wavelength of
approximately 254 nanometers (2537 Angstroms). The water with the bacteria/algae passes
over the bulb (or around the bulb if a quartz sleeve is used) and is irradiated with this wavelength.
As the light penetrates the bacteria/algae, it mutates the DNA (genetic material), preventing
growth/multiplication of the organism.
Application
1.Food processing industry, including juices, milk, drinks, beer, practical oil and canned food.
2.Electronic industry.
3.Hospitals, various laboratory and high levels of pathogenic body water disinfection.
4.Households building, residential, office buildings, hotels, restaurants, water factories.
5.Purification and disinfection of shellfish, fish cleaning and disinfection
6.Military camp, field water supply system
7.Urban wastewater disinfection.
8.Swimming pool, other recreational water disinfection
9.Thermal power, nuclear power plant industrial, central air conditioning system cooling water.
10.Biological, chemical and pharmaceutical, cosmetics for the production of cooling water.
11.Sea water, fresh water breeding, aquaculture water
12.Agricultural water disinfection
Working principle:
The device adopts a special high strength non ozone ultraviolet sterilizing lamp and stainless
steel barrel body odor whose inner wall specially treated by micro carbon martensite, outer side
of the barrel body with a special polishing processing, then the pretreated water flows in the tube, i
t will receive enough line volume of ultraviolet irradiation 253.7nm, which shows excellent germicidal
efficacy, but also effectively reduces the influence on ultra pure water.
Optimal service condition:
As UV is a short- wavelength light wave, it has low radiant energy and weak penetrating power
and can only kill the microorganisms it directly radiates on. Therefore, in order to enhance the
bacteria-killing efficiency and ensure the security of drinking water, the incoming water into the
sterilizer must meet the following standard, (and if exceeding the following standard, the killing
efficiency may be affected).
|
Total iron content
|
Less than 0.3ppm(0.3mg/L)
|
|
H2S
|
Less than 0.05ppm(0.05mg/L)
|
|
Total suspended matter
|
Less than 10 mg/L
|
|
Manganese content
|
Less than 0.05 mg/L
|
|
Water hardness
|
Less than 120 mg/L
|
|
Chroma
|
Less than 15centigrade
|
|
Water Temp.
|
5-60Centigrade
|
|
PH value
|
6.5-8
|
|
Interface type
|
flange or thread
|
Product features:
1. SS304 or SS316 stainless steel reactor.
2. Quartz sleeve to ensure the best working temperature.
3. Comprehensive sterilization, efficient and fast, sterilization rate is up to 99.9%.
4. High output, physical sterilization, without negative effects, without secondary pollution.
5. Full stainless steel shell, adopts European technology, smooth inner wall, without blind zone.
6. Equipment is cleaning and polishing, applicable to high purifying environment.
7. The electrical device is configured to apply in the market around the world.
8. Has special design, and operates very conveniently.
|
model
|
capacity
|
Power
|
inlet-outlet
|
reactor
|
panel
|
Anchor
|
G weight
|
|
|
m³/hour
|
watt
|
mm
|
L×W×H
|
cm
|
screw
|
Kg
|
|
YLCn-005
|
0.3
|
16
|
1/2″
|
30×6×11
|
without
|
without
|
5
|
|
YLCn-008
|
1
|
25
|
1/2″
|
47×6.3×11
|
without
|
without
|
10
|
|
YLCn-050
|
2
|
40
|
1″
|
100×9×20
|
Φ8.9×25
(d×L)
|
69×4×Φ1
|
25
|
|
YLCn-150
|
6
|
80
|
1+1/4″
|
100×11×23
|
|
69×4×Φ1
|
30
|
|
YLCn-200
|
8
|
120
|
1+1/2″
|
100×15.9×30
|
Φ8.9×45
(d×L)
|
69×7×Φ1
|
35
|
|
YLCn-300
|
12
|
160
|
2″
|
100×15.9×32
|
|
69×7×Φ1
|
40
|
|
YLC-050
|
2
|
40
|
DN25/1″
|
100×8.9×30
|
25×30×12
(W×H×D)
|
60×4×Φ1
|
45
|
|
YLC-150
|
6
|
80
|
DN32/11/4″
|
100×10.8×30
|
|
60×4×Φ1
|
50
|
|
YLC-200
|
8
|
120
|
DN40/11/2″
|
100×15.9×40
|
|
60×7×Φ1
|
60
|
|
YLC-300
|
12
|
160
|
DN50/2″
|
100×15.9×40
|
|
60×7×Φ1
|
70
|
|
YLC-360
|
15
|
200
|
DN65/21/2″
|
100×15.9×40
|
|
60×7×Φ1
|
120
|
|
YLC-500
|
20
|
240
|
DN65/21/2″
|
100×21.9×50
|
|
60×11×Φ1.2
|
130
|
|
YLC-600
|
25
|
280
|
DN80/3″
|
100×21.9×50
|
|
60×11×Φ1.2
|
140
|
|
YLC-700
|
30
|
320
|
DN100/4″
|
100×21.9×50
|
|
60×11×Φ1.2
|
150
|
|
YLC-1000
|
40
|
360
|
DN100/4″
|
100×21.9×50
|
|
60×11×Φ1.2
|
160
|
|
YLC-1200
|
50
|
400
|
DN125/5″
|
100×21.9×50
|
|
60×11×Φ1.2
|
180
|
|
YLC-1500
|
60
|
420
|
DN150/6″
|
170×27.3×57
|
|
120×16×Φ1.4
|
210
|
|
YLC-2000
|
80
|
560
|
DN150/6″
|
170×27.3×57
|
|
120×16×Φ1.4
|
220
|
|
YLC-2500
|
100
|
700
|
DN150/6″
|
170×27.3×57
|
60×128×30
(W×H×D)
|
120×16×Φ1.4
|
275
|
|
YLC-3000
|
125
|
840
|
DN150/6″
|
170×27.3×57
|
|
120×16×Φ1.4
|
300
|
|
YLC-4000
|
150
|
1120
|
DN200/8″
|
173×32.5×65
|
|
120×20×Φ1.6
|
325
|
|
YLC-5000
|
200
|
1400
|
DN200/8″
|
173×37.7×72
|
|
120×22×Φ1.6
|
350
|
|
YLC-7000
|
300
|
2100
|
DN250/10″
|
175×42.6×80
|
|
120×24×Φ2.0
|
400
|
|
YLC-10K
|
400
|
2520
|
DN250/10″
|
176×52.9×95
|
60×150×40
(W×H×D)
|
120×22×Φ2.2
|
475
|
|
YLC-15K
|
600
|
3080
|
DN300/12″
|
176×78×110
|
|
120×32×Φ2.4
|
600
|
|
YLC-20K
|
800
|
3920
|
DN350/14″
|
Designated
|
Designated
|
Designated
|
Designated
|
|
YLC-25K
|
1000
|
4760
|
DN350/14″
|
Designated
|
Designated
|
Designated
|
Designated
|
FAQ:
01. What is the source of raw water to be treated?
-- is it underground water or well water? or river water ,other source?
02. What is the capacity(m3/hour) you required for this sterilizer?
-- most IMPORTANT requirement.
03. What will the treated water be used for?
--for human drinking or industry purpose?
04. What is the power supply in your country?
220V/60Hz or other?
