Product Details:
Payment & Shipping Terms:
|
Highlight: | Prepaid Water Meter,RF Card Prepaid Water Meter,Contactless Card Prepaid Water Meter |
---|

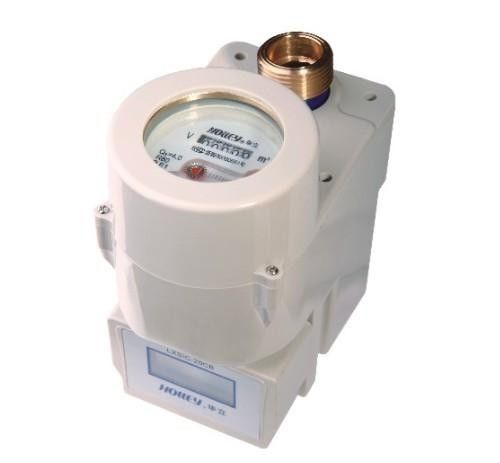

Full Name: IC Card Vertical Water Meter
Mode:LXSIC-15CB~LXSIC-25CB
Application:Measuring the volume of cold potable water passing through the pipeline
Features:Vertical Installation, save space, character wheel sealed in special liquid, clear reading, high measuring accuracy; user convenience, large storage capacity, safe & reliable; able to fulfill the prepayment function for property management fees
Technical Standards:GB/T 778.1~778.3-2007、JJG 162-2009
Technical Data
Nominal Dia. DN (mm) | Q3 m³/h | Q3/Q1 | Q2/Q1 | ||
15 | 2.5 | 100 | 80 | 63 | 1.6 |
20 | 4 | 100 | 80 | 63 | 1.6 |
25 | 4 | 100 | 80 | 63 | 1.6 |
Within the temperature range from 0.1℃to 30 ℃, meter maximum permissible error: upper zone(Q2≤Q≤Q4),±2%;low zone(Q1≤Q<Q2), ±5%
Installation & Weight
Nominal Dia. | Length L | Length L1 | Width B | Height H | Connecting Thread | |
DN (mm) | mm | d | D | |||
15 | 248 | 155 | 95 | 156 | R1/2B | G3/4B |
20 | 298 | 195 | 95 | 156 | R3/4B | G1B |
25 | 335 | 215 | 95 | 156 | R1B | G5/4B |
