UTG100D Ultrasonic Thickness Gauge

Name: UTG100D Ultrasonic Thickness Gauge
Brand: China Coal
SKU: UTG100D Ultrasonic Thickness Gauge
Rating: 4.8 (173 reviews)

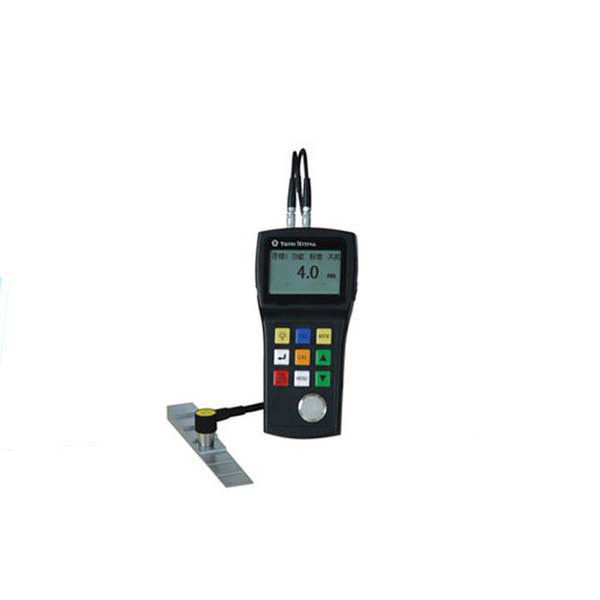

Large Image : UTG100D Ultrasonic Thickness Gauge

Product Details:

Place of Origin:	China
Brand Name:	China Coal
Model Number:	UTG100D Ultrasonic Thickness Gauge

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	standard export packaging
Delivery Time:	7 days after confirm the order
Payment Terms:	T/T ,Western Union, Payal
Supply Ability:	5000 per month

Contact Now

Detailed Product Description

Highlight:

UTG100D Ultrasonic Thickness Gauge

High accuracy digital ultrasonic thickness gauge

chinacoal01

UTG100D Ultrasonic Thickness Gauge

UTG100D Ultrasonic Thickness Gauge ,

Ultrasonic Thickness Gauge ,

Thickness Gauge

Product Introduction

*Automatic self-calibration

*Couplant indicator

*Automatic power off in 5 minutes and manual power off function

*High-low limit alarm

*LCD brightness adjustable

*Through coating capability

*Low battery indicator

*Two points calibration

*Metric/imperial optional

*Dataview for PC communication

Main Parameter

Measuring mode	In two function modes of Standard mode and through coating mode
Standard mode (measuring range)	0.8 mm-- 300.0 mm in steel depending on the probe Special request can reach measuring range up to 500mm
Through coating mode	2.5 mm – 18.0 mm (Probe PT-08 and PT-12 )
Display	128X64 Pixel LCD with backlight
Tolerance	+/-0.05 mm in steel
Display resolution	0.1 mm
Built-in standard block	4.0mm
Memory	500 data in 5 groups, memory does not lose after powering off
Velocity range	1000-9999 m/s
Power	2 pcs 1.2 V AAA batteries
Dimension	149X73X32 mm
Weight	160 g
