Monitor, Manage and Protect your Fuel Or Liquid Features

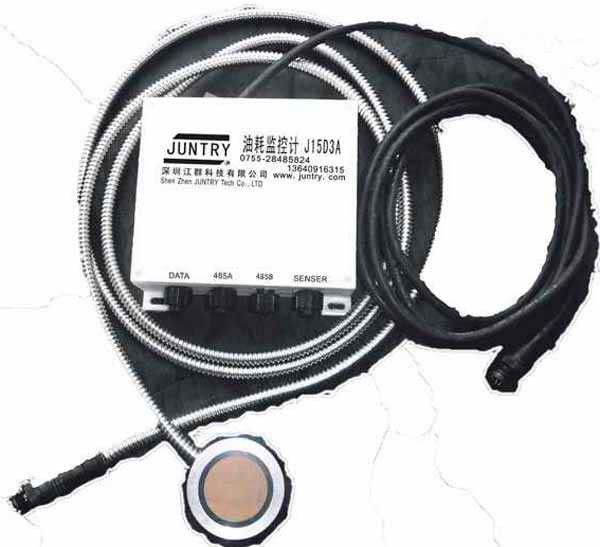

J15D3A Throu-wall Ultrasonic liquid level Gauge is used for fuel level or liquid measurement in vehicle fuel or liquid tanks in order to control fuel consumption. The measurements are realized by the ultrasonic sensor installed directly on the external bottom part of the fuel tank and Mainframe Unit. The Throu-wall Ultrasonic liquid level Gauge can measure levels of diesel and petrol or other liquid materials depending on software settings.
Features
• Truly non-invasive sensing technique
• Sensors bonded to outside of tank shell
• Fits tanks of most shapes and sizes
• Output to GSM GPRS GPS system – various options
• RS485/232 Communications
Benefits
• Low cost, reliable & accurate tank gauging
• Not affected by temperature fluctuations
• Easy installation - no tank break-in
• Simple retrofit to existing tanks
• No down-time during installation
• No moving parts – no maintenance
• When combined with a GPS telemetry tracking system, the fleet
• manager can get an accurate and up to date indication of the •
• vehicles fuel consumption, and be warned of any excess
• consumption due to fuel theft.
Description
JUNTRY is used by most of the leading beverage, pharmaceutical and chemical companies around the world for accurate, reliable,simple and safe tank contents gauging. This configuration has beendeveloped for level measurement on vehicle’s fuel tanks. Can be stored 1-12 months, level, temperature data.
Principle of Operation
A small ultrasonic sensor is bonded to the outside base of the fueltank. The system calculates the height of the liquid in the tank fromthe time taken for the signal to be transmitted and then received fromthe liquid surface. Signals from the transducer are fed into the processor and then output to a separate system. The package is supplied as a sensor processor pair. The system can be configured to work in a low power mode which can be controlled from the telemetry system where required.
Current Applications include
• Refrigerant receivers
• LPG tanks
• Distilled spirits vats
• Beer tanks
• Pure water tanks
• Liquid chlorine tanks
• Acids / solvents tanks
Specifications
Max High 3m （5-20m Chosen） | Display resolution：1mm |
Wall thickness 1-8mm（5-20mm Chosen ） | Short time repetitive：1mm |
DC supply 12-36V（110V、220V Chosen） | Accuracy Measurement：1‰ |
Host use temperature：-20℃～+70℃ | Senser use temperature: -40℃～+100℃（250℃ Choose） |
