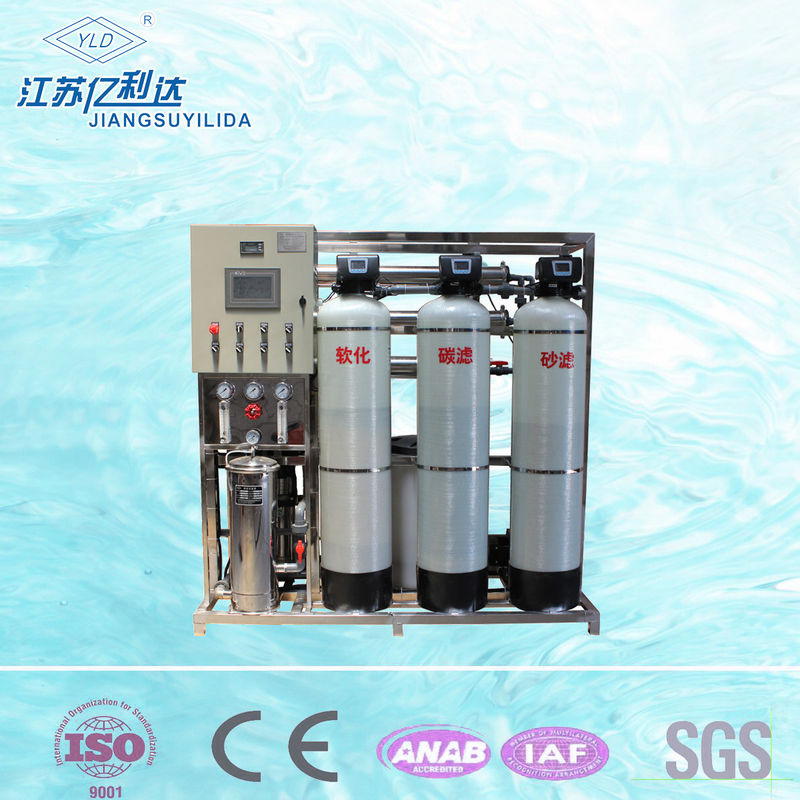

High Pressure Reverse Osmosis Water Treatment Plant FPR Material Tank Small Capacity

High Pressure Reverse Osmosis Water Treatment Plant FPR Material Tank Small Capacity

With the report of raw water and the different requirements in different field, we can make a appropriate design for you.
1) Adopts imported RO membrane from America, which can remove 99.7% inorganic salt,

heavy metal ion and completely get rid of colloid, microbiology organic materials, germ, protozoa, pathogens, bacteria, inorganic chemical and so on.
2) No need to add any chemicals, stable pure water quality, and no pollution drained, low produce cost.
3) Equipped with pretreatment system, such as active carbon absorption filter and PP

sediment filter.
4) 304 stainless steel rack and pipe accessories connection.
5) Equipped with auto pressure protection system and on -line monitor.
6) Automatically and manually wash RO membrane. Also the design of washing the RO membrane is by chemical solution (citric acid or sodium hydroxide optional
7) The lifespan of the whole system is long, operation simple, the applicability is strong.

Specifications:

Removing ratio of reverse osmosis on ions:

Working principle

Reverse osmosis,short for RO, which is under external pressure, and some components in solution

through selective, so as to realize the purpose of desalination, purification and enrichment separation.

When it is used in water treatment equipment, it can remove most ions in water, and also the fine particles, bacteria and organic impurities. Nowadays, it is the advanced and economic water treatment equipment

over the world. Reverse osmosis is used of high pressure pump continuously to force the water content

high salt delivered to the RO device, RO device comprises a reverse osmosis membrane element and

the pressure vessel, input water is divided into low salt of penetration solution and high salt of

concentrated solution. Water is controlled by regulating valve according to proportion of the

concentrated solution and penetration solution.

Technical index

 (1) Input water quality

  Pollution index FI＜4

  Oxygen consumption:＜1.5mg/L

  Free chlorine:0.3-1.0mg/L

 Iron content:＜0.5mg/L

PH value:5.5-6.5

  Water temperature:20-35℃

(2) Application of water quality

Sea water desalination: input water salinity:10000-35000mg/L

Brackish water desalination: input water salinity:1000-10000mg/L

. Application:

1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water

2. Food and beverage industry: filter for mineral water, wines and fruit juice

3. Medicine industry: filter for drug liquid, gases

4. Chemical industry: filter for organic solvent

5. Petroleum industry: filter for oil-field flooding

(3) Removal ratio for pollutant

Ratio of desalinization:≥97%

Removal ratio for organics:≥95%

Removal ratio for disinfection≥99%

Operating procedure

01. Raw water

02. Tank for raw water

03. Pump for raw water

04. Mechanical filter

05. Activated carbon filter

06. Water softener

07. Scaling prevent and dosing

08. Ultrafiltration filter

09. High pressure pump

10. Reverse osmosis

11. Tank for pure water

12. Qualified water
