High Pressure Dry Type Combination Water Meter for Turbine , Industrial Water Meter

Name: High Pressure Dry Type Combination Water Meter for Turbine , Industrial Water Meter
Brand: Yongzhou
SKU: PKM-5/8”X3/4”
Rating: 4.6 (155 reviews)

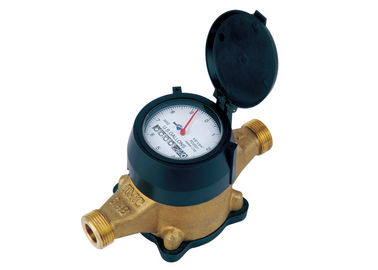

Large Image : High Pressure Dry Type Combination Water Meter for Turbine , Industrial Water Meter

Product Details:

Place of Origin:	Ningbo ,China
Brand Name:	Yongzhou
Certification:	ISO9001:2008
Model Number:	PKM-5/8”X3/4”

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Packaging Details:	White box and carton
Delivery Time:	15-30days after receiving deposit
Payment Terms:	T/T , LC, West union, MoneyGram, etc.
Supply Ability:	100000 pcs/month

Contact Now

Detailed Product Description

Application:	Industrial	Dial:	Dry Dial
Feature:	Horizontal\|High Pressure \|Rotary\|Low Flow	Material:	Iron\|Brass
Product Name:	Mechanical Water Meter	Type:	Single Jet
Water Type:	Cold
Highlight:	commercial water meters , hose water meter

High Pressure Dry Type Combination Water Meter Industrial for Turbine
Description:
Bottom Load Volumetric Piston Type American Water meter PKM-5/8”X3/4”~1”

Quick Detail:

1. Type name: Volumetric piston type
2. Model No.: PKM-5/8”X3/4”
3. Standard :AWWA C-700
4. Material: Lead-free bronze
5. Feature :High precision, low head loss
6. Horizontal installation

Product features:

Adopting volumetric rotary piston principle of measurement with conformity to AWWA C-700
Copper sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
The register ,measure subassembly and copper body separated from water to ensure most frost protected housing center
Adopting long pointer structure in the register and good looking
High precision ,low head loss
Measuring units: U.S.GALLON, CUBIC FEET and M3,high quality reed type pulse for option reliable signal output ,long working life and the signal use two-wire output ,operating distance is over 100m

Installation requirements:

Meter should be installed in horizontal position with the register face upwards
Pipe line must be flushed before installation
The meter should be constantly full of water during operation

Main Technical data

METER SIZE	*5/8”3/4” 1”1”* 20mm 25mm
FLOW RATE(AT 13 PSL HEAD LOSS)	U.S.GPM(M³/H)	20(5)	50(12)
CONTINOUS FLOW	U.S.GPM(M³/H)	10(2.5)	25(6)
NOMAL FLOW	U.S.GPM(M³/H)	1-20(0.2-5)	3-50(0.6-12)
LOW FLOW	U.S.GPM(M³/H)	1/4(0.05)	3/4(0.15)
MAXIMUM WORKING PRESSURE	PSI(MPA)	150(1)	150(1)
MAXIMUM WORKING TEMPERATURE	DEGREE(℃)	122(40)	122(40)
LENGTH	INCHES(mm)	7-1/2”(190)	10-3/4”(273)

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤40℃ (For cold water meter)
Water pressure: ≤1.6Mpa

Competitive Advantage:

Reasonable price with good quality
Long time guarantee
100% tested
On time delivery
