Industrial Water Filter System UF Membrane Inside-out Outside-in

Name: Industrial Water Filter System UF Membrane Inside-out Outside-in
Brand: Hinada
SKU: NM-UF-90
Rating: 4.8 (143 reviews)

Large Image : Industrial Water Filter System UF Membrane Inside-out Outside-in

Product Details:

Place of Origin:	China
Brand Name:	Hinada
Model Number:	NM-UF-90

Contact Now

Detailed Product Description

Highlight:

crossflow membrane filtration

ultrafiltration hollow fiber membrane

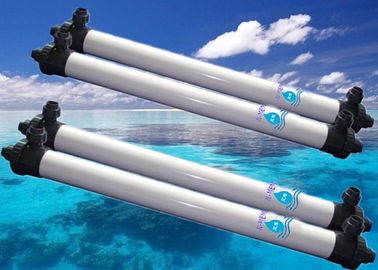

Industrial Water Filter System UF Membrane Inside-out Outside-in

PVDF UF Membrane(90) Descriptions:
Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.
This UF-90 Membrane is special designed for industrial small project like less than 5000Ltr/Hour, the filtration can be inside-out or outside-in, it's depends on client choose .

NM-UF-90 Membrane Specifications:

Model	Material	I/O Diameter	Pore size	Housing	Area	Design flow rate
NM -90-UF	PVDF	0.6/1.2mm	0.01—0.1um	U-PVC	10m²	500-1200L/H
	PVC	1.0/1.66mm	0.01—0.1um	U-PVC	4.2m²	250-600L/H
	PES	0.4/0.6mm	0.01—0.1um	U-PVC	10m²	500-1000L/H

Pre - filtration	50-150 um
Max turbidity of inlet water	≤15 NTU
Filtration	Cross-flow filtration or dead end filtration
Max inlet water pressure	0.45 MPa
Max pressure difference of transmembrane	0.2 MPa
Applicable PH range	1- 12
Tolerable continuous residual chlorine	100 PPM
Tolerable interval residual chlorine	200 PPM

Application:
Industries such as chemical and pharmaceutical manufacturing, food and beverage processing, and waste water treatment, employ ultrafiltration in order to recycle flow or add value to later products. But also blood dialysis belongs to ultrafiltration.

In drinking water purpose: UF can be used for the removal of particulates and macromolecules from raw water to produce potable water.
Protein Concentration: UF is used extensively in the dairy industry, fruit juice concentration, pretreatment of RO System.

Packaging:
Paper carton pack.

Our Service :

We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System
