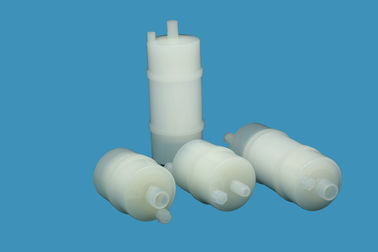

125mm / 0.45 micron Small Pleated Filter Cartridge for Wine Filtration

All Products

Waste Water Flow Meters (172)

Multi Jet Water Meter (81)

Single Jet Water Meter (77)

UV Water Sterilizer (101)

Industrial Water Filters (121)

Woltman Water Meter (84)

Residential Water Meters (96)

Vertical Water Meter (83)

Ultrasonic Flaw Detector (118)

Ultrasonic Thickness Gauge (107)

Volumetric Water Meter (67)

Piston Water Meter (82)

Liquid Level Meter (67)

Irrigation Water Meters (82)

Remote Reading Water Meter (136)

Plastic Water Meters (70)

Cooperation is very satisfactory and the Company of the past few years, we are very willing to continue long-term cooperation.

—— Dean

The company considerate after-sales service ,And try their best to meet the requirement of customers. We will be a long-term cooperation.

—— Albert

Easy to talk with, very professional and fast service, the quality is super good. Even better than we ordered from Germany!!

—— Germany Fabian Scherb

I'm Online Chat Now

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	2 PCS
Price:	0~10 USD
Packaging Details:	Export standard package: 1pc filter cartridge/ 1 polybag/ 1 small carton; 12 or 20 pcs in one big carton
Delivery Time:	3-15 days
Payment Terms:	T/T
Supply Ability:	12000pcs/month

Contact Now

Detailed Product Description

Membrane:

Polypropylene

Material:

Polypropylene

Removal Rating:

1.0-50.0 Um

Highlight:

water filter cartridge replacement

125mm / 0.45 micron Small Pleated Filter Cartridge for Wine Filtration

Quick Detail:

Application:

Material	Membrane:	PES,PP,PTFE,PVDF,NYLON,CN-CA,etc.
	Inner Core:	Polypropylene
	Outer Core:	Polypropylene
	Support Layers:	Polypropylene
	O ring/Gasket:	Silicone, EPDM, Buna , Viton, Teflon
Specifications	Pore size(um):	0.45
	Outer Diameter(OD):	56mm
	Length(inch):	70mm (Including adapter) or 125mm(Including adapter)
	Endcaps:	214,226
Technical data	Max differential pressure:	4.2 bar (60 psi) at 25℃ (77℉);
	Max temperature:	80℃ (172℉)at△P≤1.0 bar (14psi)
	Filtration Surface Area:	0.12M2 to 0.23M2
