UV water treatment sterilizer
I. UV disinfection system Description

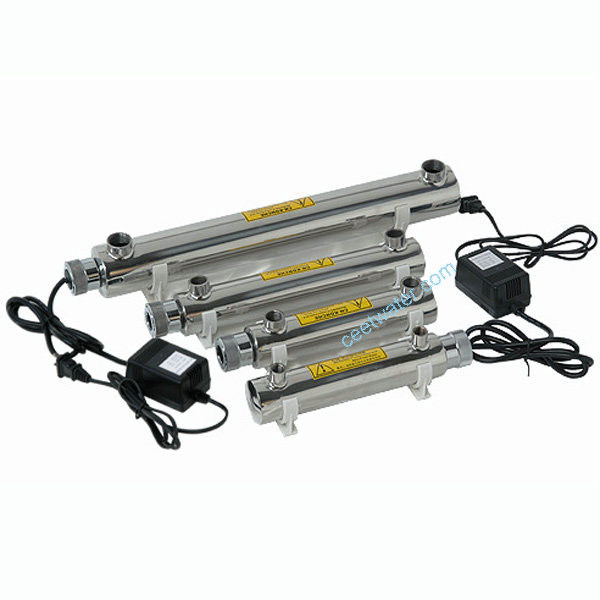

Household UV Sterilizer
| Model | Power | Flow Rate | Lamp | Sight Port | Dimension(mm) | Inlet& Outlet | Note |
| KCS/C10W | 10W | 0.2T/H | 10W×1 | NO | 260×51 | DN6 | Single end four pins |
| KCS/C14W | 14W | 0.5T/H | 14W×1 | NO | 350×51 | DN12 |
| KCS/A-40W | 40W | 2.3T/H | 40W×1 | YES | 902×102×190 | DN25 |
| KCS/A-28W | 28W | 1.83T/H | 28W×1 | YES | 600×89×150 | DN25 |
| KCS/A-23W | 23W | 1.36T/H | 23W×1 | YES | 500×89×150 | DN20 |
| KCS/A-16W | 16W | 0.5T/H | 16W×1 | YES | 400×Φ63 | DN12 |
| KCS/A-11W | 11W | 0.25T/H | 11W×1 | YES | 320×Φ51 | DN6 |
| Basic component: Single UV lamp, quartz sleeve,electronic ballast,304/316 stainless steel chamber |
II. UV disinfection system Component:
Originally imported UV lamps from America and Europe with operation lifetime over 9000 hours
304 or 316 Stainless steel reaction chamber, electro polished inside and out
254nm UV single lamp,
High transmittance quartz sleeve,
Ballast-power supply
Both open end style
Sight port to view the germicidal lamp operation
III. UV disinfection system Specifications
Water capacity :0.25-4T/H
Electric supply: 220-240V/60Hz
Maximum operation pressure: 125PSI
IV. UV disinfection system Advantages
1.High efficient sterilization: normally kill 99%-99.9% bacteria within 1 to 2 seconds
2. Broad spectrum: UV rays has broadest spectrum, can kill almost all bacteria and virus.
3. No secondary pollution: don’t add any chemical agent, so cannot create secondary pollution to water and ambient environment, do not change any ingredients in water.
4. Safe and reliable to operate: traditional disinfection technology such as adopting chloride or ozone, whose disinfection agent itself are highly toxic and flammable material. While UV sterilizer has no such potential safety hazard .
V.UV disinfection system Features1.Adopting high efficiency UV-C (LL or LH) lamp
About UV sterilizer adopts world leading low pressure and high strength UV tube, whose operation life is above 9000 hours.
2. Adopting high light transmittance, high purity quartz drive pipe, ensure UV rays transmittance rate above 90%.
3. Adopting world advanced constant high strength UV special ballast, ensure the whole system normally operate in a complex condition.
VI. UV disinfection system Application
A. Drinking water disinfection,tap water,pure water
B. Food and beverage water,industrial process water
C. Swimming pool and spa,scenery water,irrigation water
D. Waster water disinfection
Uv Disinfection Systems Application
- Food processing and industrial water disinfection.
- Hospitals, various laboratory water disinfection, and high levels of pathogenic water disinfection.
- Municipal water
- Biochemical pharmaceutical, cosmetics production water disinfection.
- Aquatic products processing water disinfection.
- Swimming pool water disinfection.
- Seawater, freshwater aquaculture breeding water disinfection.
- Ultra-pure water for electronic industry, and so on.
Uv Disinfection Systems Application
- Food processing and industrial water disinfection.
- Hospitals, various laboratory water disinfection, and high levels of pathogenic water disinfection.
- Municipal water
- Biochemical pharmaceutical, cosmetics production water disinfection.
- Aquatic products processing water disinfection.
- Swimming pool water disinfection.
- Seawater, freshwater aquaculture breeding water disinfection.
- Ultra-pure water for electronic industry, and so on.
We are UV sterilizer manufacturers supply a variety of UV sterilizer for sewage water treatment, sewage solutions we offer, welcome to ask us
