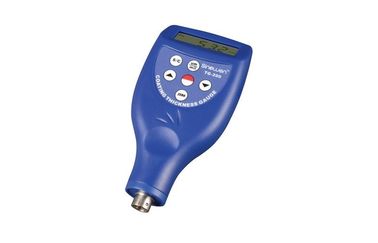

Precision Non Destructive Testing Equipment Coating Thickness Gauge with F and NF Measuring Probes

Large Image : Precision Non Destructive Testing Equipment Coating Thickness Gauge with F and NF Measuring Probes

Product Details:

Place of Origin:	DONGGUAN/CHINA
Brand Name:	SINOWON
Certification:	CE
Model Number:	TG-200

Payment & Shipping Terms:

Minimum Order Quantity:	5 Sets
Packaging Details:	Carton Box
Delivery Time:	5 Days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	500 Sets per Month

Contact Now

Detailed Product Description

Measuring Range:

0-1250um Or 0-50mil (default Range)

Min. Sample Thickness:

0.3mm

Accuracy:

±1-3% Or ±2.5um

Min. Measuring Area:

6mm

Highlight:

Non Destructive Testing Machine

Non Destructive Test Equipment

Application Description:

F Type Magnetic induction:
● Can measure the thickness of non-magnetic coating layers on magnetic substrate
● Such as: (aluminum, chrome, copper, enamel, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)

NF Type Eddy Current:
● Can measure the thickness of non conductive coating layers covered on nonferrous substrate.
● Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on nonferrous substrate (aluminum, brass, zinc, tin and nonmagnetic stainless steel)

Features:

* Two measuring methods: magnetic induction (F) and eddy current (N)

* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)

* Metric/imperial system selectable.

* Manual or automatic shut down.

* Auto memory of calibration value,and auto recognize the substrate.

* Operation process have buzzing reminder,while no buzzing in continuous mode.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output” choice.

* Separate Type can provide several type probe, measure can be more flexibility.

Technical Specifications:

Model	TG-200
Order#	761-106
Measuring range	0-1250um/0-50mil (default range)
Operating principle	Ultrasonic
Resolution	0.1/1
Min. radius work piece	F: Convex 1.5mm / Concave 25mm
Min. radius work piece	N: Convex 3mm / Concave 50mm
Min. measuring area	6mm
Min. sample thickness	0.3mm
Battery indicator	low battery indicator
Accuracy	±1-3%n or ±2.5um
Metric/ imperial	convertible
Power supply	4x1.5V AAA(UM-4)battery
Power supply	Auto switch off
Operating conditions	Temperature:0~45℃(32FH~104FH)
Operating conditions	Humidity≤90%RH
Dimensions	126x65x27mm
Weight	81g(not including battery)
