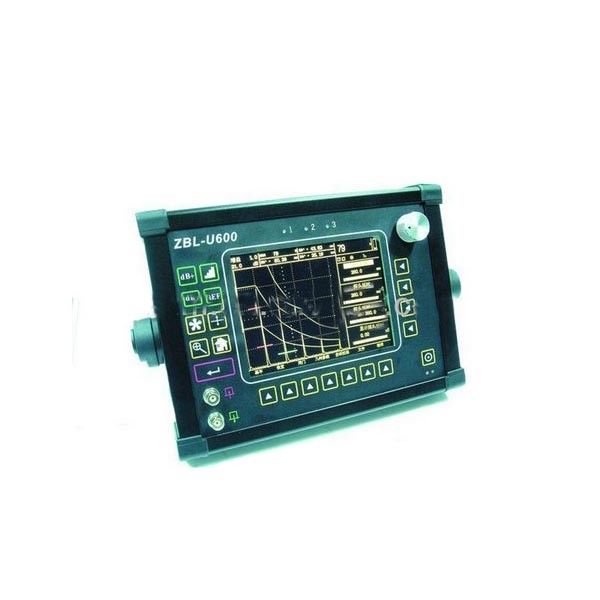

Product Name: U600 digital ultrasonic flaw detector (defects detector)
Company Name: Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
Introduction
U600 is used to examine the internal defects of various materials such as steel, copper, aluminum, hard alloys, castings, poly methyl methacrylate, composite materials, weld joints, etc. This device can detect defects such as holes, cracks, loosening, impurities, incomplete penetration, etc. This instrument is practical and portable, and it can be used in a variety of fields such as aerospace, military industry, chemical industry, electronics, iron & steel, metallurgy, railroad, train, automobile, motorbike, machinery, security checking, pipelines, general construction, etc.
Features
1)High resolution color LCD display with echo dynamic simulation real-time measuring system.
2) Reference waveform and on site A scan are displayed simultaneously in different colors, facilitates the analysis of tests results.
3)400kHz – 20 MHz frequency range. The frequency can be adjusted to suit the appropriate requirements and enables optimized performance.
4) 15Hz – 1500 Hz pulse repetition frequency eliminates virtual image echo, and effectively eliminates the long acoustic wave during material testing.
5)Operators can choose displayed information according to their needs.
6)Multi-curve DAC adjusts distance error or amplitude caused by material deficiency.
7)4 optional color themes with adjustable brightness.
4 optional attenuation settings (50,75,150, and 1,000), to optimize transducer performance.
8)Auto-adjust setting makes the operation simpler.
9)dB step length function with 6 gain knob incremental ,1 locking incremental.
10)Save and preview data sets with A scanning, enables fast recovery of data and instrument settings.
Main Parameter
Technical specifications |
Vertical linearity error | ≤3% | Monitor | 6.5” large color LCD screen |
Horizon linearity error | ≤0.2% | Display resolution | 640×480 |
Detection sensitivity headroom | >50dB | Operating method | Shortcut key+photoelectric knob |
Dynamic range | >40 dB | Power | 6.4Ah lithium battery,operation >8hrs |
Frequency range | 0.5-20 MHz | Dimension | 262mm× 194 mm× 50 mm |
Resolution | >26 dB | Weight (lithium battery included) | 2.2kg |
204V�) �� p� d:rgb(255,255,255); " >
Not more than 0.2% in the scanning range
Sensitivity Leavings
≥62 dB
Dynamic range
≥32dB
Alarm
Three modes, i.e. forbidden wave, loss wave and auto
Monitoring door
2, expressed by bold transverse line, whose start, width and height are adjustable.
Adjusting range of start (mm): horizontal pixel 0~208, the displayed value is relative with the scanning range.
Step: value in mm corresponding to a pixel (relative with the scanning range)
Adjusting range of width (mm): horizontal pixel 4~212, the displayed value is relative with the scanning range.
Step: value in mm corresponding to a pixel (relative with the scanning range)
Adjusting range of height: 2%~90% of vertical graduation
Step graduation: 1%
Display
Display: high-brightness lattice
A-Scan display area
Full screen or local
A-Scan display freezing and de-freezingA-Scan filling
Data save
300 A-Scan images (including setting of instrument)
30000 values of thickness (300 sets)
Standard interface
RS232 for communication with PC
Measuring unit
mm/inch
Battery
Li battery 4×3.6V4800mAh
Power adaptor
Input 100V~240V/50Hz~60Hz
Output 9V~12VDC/1.5A
Working temperature
-20°C~70°C
Working humidity
20%~90%
Port type
BNC
Dimension (mm)
240×180×50
Weight (kg)
1.8
