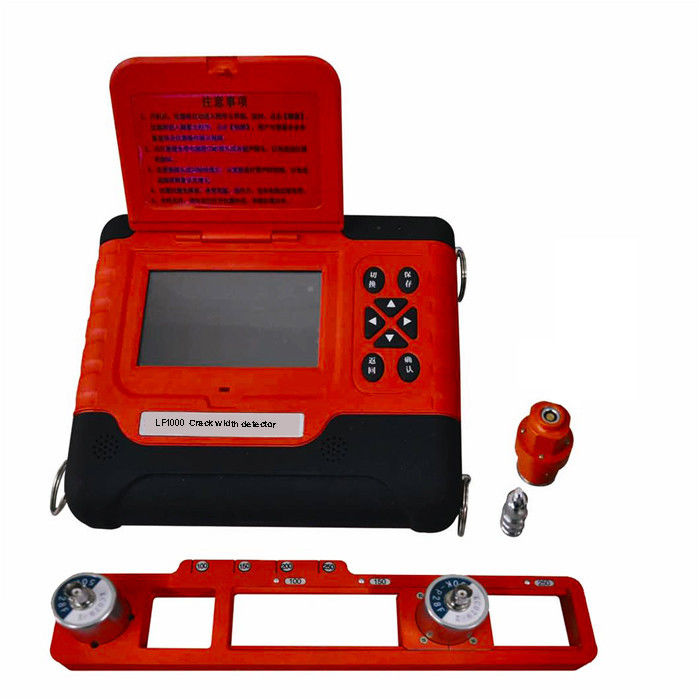

Construction Non Destructive Testing Equipment Smart Crack Width Gauge

Large Image : Construction Non Destructive Testing Equipment Smart Crack Width Gauge

Product Details:

Place of Origin:	China
Brand Name:	SRI
Certification:	ISO9001:2008
Model Number:	CW-12

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	1500-2000USD
Packaging Details:	Standard exporting package
Delivery Time:	5 working days after received your payment
Payment Terms:	T/T, Paypal
Supply Ability:	300sets/month

Contact Now

Detailed Product Description

Warranty Period:	24months	Test Range:	0-12mm
Detection Accuracy:	±0.02mm/±0.01mm	Amplification Times:	40
Screen:	3.5 Inch LCD	Power Supply:	Li-on Battery
Overall Size:	120x90x50mm	Net Weight:	2kg
Highlight:	ndt instruments , non destructive testing instruments

Application

It can test the surface crack width in real time automatically, also it can test the crack width in real time automatically when cracking but no need for people aside.

Features

Automatic interpretation, direct display of crack width value on the screen

Automatic shooting of crack photo, real time image display

Photos and data can be reviewd

Multiple probes with different amplification times can be selected

Lighting device self-contained with the probe, all whether operation, won’t be affected by the illumination change;

Portable main machine made with plastic, features nice appearance, durable in use

Bmp format photo can be stored in u flash disk;

Technical Specifications

Crack width testing range	0-12mm;
Screen size	3.5inch touch screen
Interface	standard USB and SD card interface
Testing accuracy	0.01mm;
Power supply	7.4V Li-on battery
Amplification factor	40times
Storage capacity	100000pcs crack test points image and width data;
Continuous working time	10 hours
Working temperature	-20℃~+60℃
Main machine size	120mm×90mm×50mm;
Weight	250g
Storage information	crack image, crack coding, width value, electric ruler, amplification times, operation date, personnels, can save user-defined information
