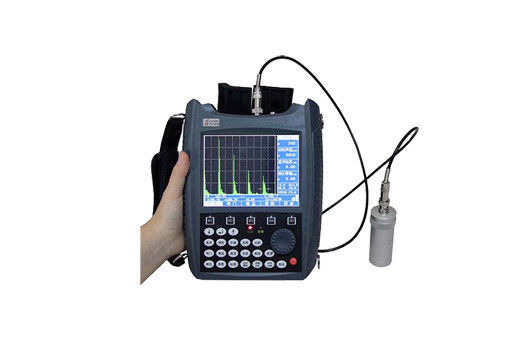

Ultrasonic Flaw Detector Non Destructive Testing Equipment For Metal detection
Description
This Ultrasonic flaw detector is used for flaw detection of Metal materials, it's kind of common metal non destructive testing equipment.
Main features
DAC, AVG curve automatic generation, limitless on sample points, can offset and correct
Transmission pulse adjustable, 2000 Hz Max.
100 independent detection channel, can free setup and storage multi kinds of detection technology and standards, sample free for in-situ detection
Max. 25m range return signal can be handled
Real-time dynamic video record during detection, can be reviewed, Max. 160mins record length
5.7 inch TFT display, display color can be customized setup
Single probe, double robe, penetration, multi kinds working modes
Positive half wave, negative half wave, full wave, Radio frequency 4 types detection mode
Features Double gates wave catch function
Automatic test results correction of defect location according to planar diameter
Automatic test, measure crack depth
Real time highest wave detection, recording Max. detection value
Features wave crest track portray, wave crest record of defect return wave, assist on defects qualitative judgement.
Features welding crack graphical presentation, equivalent hole calculation function.
Sound-light alarm can be setup under conditions like gate, curve advancing wave, wave lost, and many others.
Main menu and sub-menu on the same window, easy to see and operation
Shortcut key for main functions rapid enter, the shuttle roller easy for fast setup regulation
Multi industries reports selectable
Build-in thickness B scan, color B scan
USB 2.0 for data transport.
Large capacity lithium battery for over 20hours continuous work, the battery can be replaced freely
Spare battery can be recharged separately
Can be operated by single hand via wrist strap or front the chest via strap
Protection degree: IP53
Technical specifications
|
Test range
|
0-2500mm
|
Resolution
|
>40dB
|
|
Sound velocity range
|
400-20000m/s
|
Linear restrain
|
0-80%
|
|
Gain range
|
0-110db
|
Vertical linear error
|
≤3%
|
|
Display delay
|
-20-3400us
|
Horizontal linear error
|
≤0.1%
|
|
Probe zero shift
|
0.2-20Mhz
|
Dynamic range
|
≥32dB
|
|
Working frequency
|
≤10%
|
pulse type
|
Square
|
|
Electric noise level
|
100/150/200/500Ω selectable
|
pulse strength
|
8 steps adjustable
|
|
Probe damp
|
10-200Hz
|
pulse width
|
Auto matching 50-1000ns
|
|
Repeat frequency
|
>62dB
|
Ambient temperature
|
-10-50 degree C
|
|
Sensitivity margin
|
|
Ambient humidity
|
20-95% RH
|
