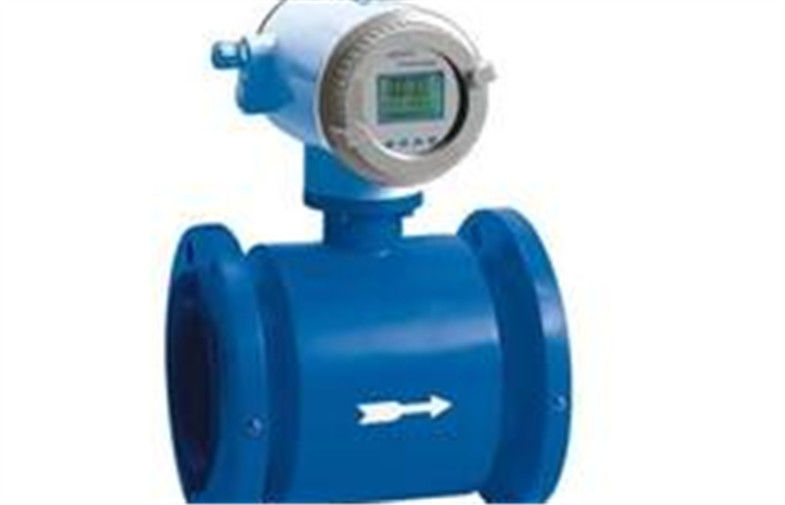

Electromagnetic Flow Meter for Pure / sewage water flow measurement

Electromagnetic Flow Meter for Pure / sewage water flow measurement

Quick Detail:

Installation modes: Flange integrated type

Aperture: DN10~DN2000

Electrode material: 316, Hb, Hc, Ti, Ta

Inside lining material: PTEE, PFA, F46, CR

Medium: conducting liquid (include solid liquid two phase body)

Accuracy grade: 0.2%, 0.5%, 1.0%

Flow velocity scope: 0.1~15m/s (flow unit selectable)

Rated pressure: 0.6Mpa, 1.0Mpa, 1.6Mpa and 4.0Mpa

Protection grade: IP67, IP68

Output signal: 4~20mA output, frequency, pulse

Communication interface: RS232, RS485, and HART

Description:

ZZGC series electromagnetic flowmeter follow the Faraday law of electromagnetic induction. They can be used to accurately measure the flowrate of liquids which are electrical conducting, caustic, and mixed with liquids .They are widely used throughout industries of petroleum, chemical engineering, pharmacology, papermaking, electric power, environmental protection and so forth.

Electromagnetic flowmeter suits for all kinds of liquids’ flow measuring such as electronic conductivity liquid, mud and slurry etc. on the basis of its min. conductivity. The result cannot be affected by temperature, pressure, viscosity and density.

It can also be used for measuring corrosive material as long as the right material has been chosen for the lining material. Solid medium will not affect the result.

Flow sensor and intelligent converter compact or separately composes a complete flowmeter.

Measuring range rate: 1:100

l No flow enhance equipment

l Suits for various of electronic conductivity liquid

l No affect from temperature, viscosity, pressure and density

l Anti-corrosion

l Measure both to and reverse flow

l Huge display, easy operate

l Long-term EEPROM to save data when lose power

l Support MODBUS/HARTcommunication protocal

l Wide working volts range

l Self diagnose

Flow sensor technical spec

Technical spec

Display reaches 8element liquid crystal display, current clock to indicate flow data. two kinds of units to choose : cubic meter or L.

Structure inserted style, compact type or separate type

Measuring medium liquid or solid-liquid two phase fluid, conductivity >0.5μs/cm2

Range 0.05m/s~12m/s

Accuracy range between 0.1m/s~10m/s can be 0.5%

DN(mm) 6mm~2000 mm

PN PN6, PN10,PN16,PN25,PN40,PN63,PN100,PN160,PN250,PN420 optional

Output signal 4~20mA or frequency

Communication RS485,support MODBUS protocol (not standard), support HART(option)

Connection DN6~DN2000 flange connection

Connection standard suits for all kinds of flange standard(eg:BS EN1092-1)

Standard accuracy apply to EN1434-1:2003 standard

CE certificate apply to LVD 2006/95/EC and EMC 2004/108/EC

EN 61326-1:2006 radiation standard (express apply to BS EN50081-1)

EN 61326-1:2006 anti-jamming standard (express apply to BS EN50082-1)

EN 61010-1:2001

Protection grade compact type for IP65,separately type for IP67or IP68(optional)

Power supply AC86~220V or DC24V(optional)

Ambient temperature 5~55C

Ambient huminity less than 85 % r.h (noncondensation)

Application area conductivity fluid such as cold and warm water, pure water and corrosive material etc.

DN(mm) 6mm~~2000mm

PN PN6,PN10,PN16,PN25,PN40,PN63,PN100,PN160,PN250,PN420

Electrode material 316L

Lining material PTFE or customize

Medium tem 0~70,max is 180

Shell material carbon steel

Protection grade IP65,IP67 and IP6

Connection all applys(eg:BS EN1092-1)

Applications:

The main application area;

Pure water, sewage water

Electronic manufacture and assign

Chemistry and industrial medicine

Specifications:

Competitive Advantage:

- Ambient temperature: -20~60;
- Relative humidity: ≤85%RH;
- Atmospheric pressure: 86KPa~106KPa;
- Applicable Fluid: electrically conducting liquid;
- Fluid temperature:-25~ +65

- Electrical conductivity: 5us/cm.
