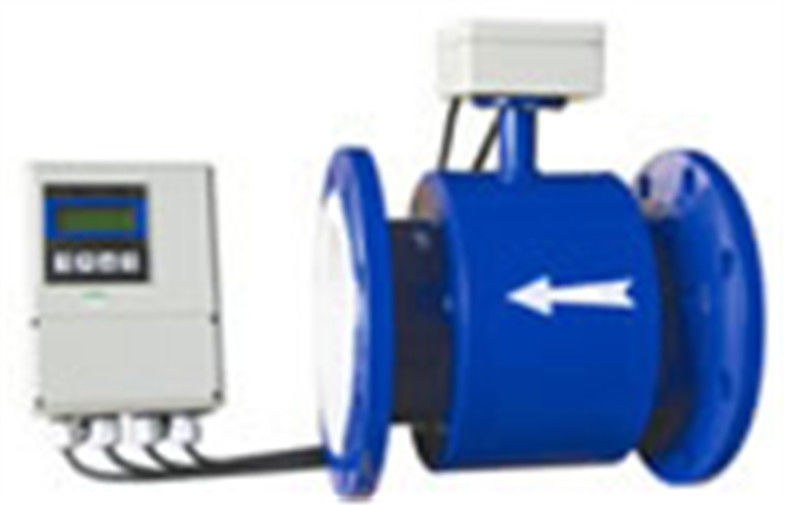

Flanged Split Electromagnetic Flow Meter with RS 485 , High Performance
Quick Detail:
1. The measuring tube without resistance parts, no pressure loss.
2. Strong stability, simple structure, do not need lining.
3. Nominal diameter has a widely range, adapt to all diameter pipeline from DN300-DN3000.
4. With integration connect with grounding.
5. The sensor with a high measuring and stability which adopt advanced processing technology and solid encapsulation.
6. Vibration resistance, prevent penetration, long service life.
Description:
The magnetic flowmeter is a kind of measuring instrument based on Faraday law of electromagneticinduction,which can measure the volume flow of electrically conductive liquid ,seriflux and so on.The structure of flowmeter is simple, function is reliable because there are no transmission parts, the working lifetime is long. There is no mechanical inertia, fast response, excellent stability. It can be applied on automatic inspection adjustment and program process system..
It is applicable for various liquid,Slurry body,and it has been widely used in the chemical industry,papermaking,petroleum.
An electromagnetic flowmeter is composed of two parts- electromagnetic flow sensor and electromagnetic flow transducer. The operation of an electromagnetic flowmeter is based on Faraday law of electromagnetic induction.The mainly parts of the sensor are: measuring tube,electrode poles,excitation coil,iron core,yoke and housing.
Electromagnetic flowmeter suits for all kinds of liquids’ flow measuring such as electronic conductivity liquid, mud and slurry etc. on the basis of its min. conductivity. The result cannot be affected by temperature, pressure, viscosity and density.
It can also be used for measuring corrosive material as long as the right material has been chosen for the lining material. Solid medium will not affect the result.
Flow sensor and intelligent converter compact or separately composes a complete flowmeter.
We have senior engineers, with more than 10 years experience on the industry technology, and devote themselves to the strict QC and the thoughtful services, besides, we can talk about the client's special demand efficiently to ensure their satisfaction.
We anticipate intensive cooperation with yourself and your company to our mutual benefit, and hereby offer professional products, active and efficient support, and worry-free after-sales service.
If you have any inquiries, Please contact us .
Applications:
The main application area;
Pure water, sewage water
Electronic manufacture and assign
Chemistry and industrial medicine
Specifications:
| Product name: |
Electromagnetic flow meter |
| Model Number: |
TEM82E |
| Size: |
DN6~DN2800 |
| Medium: |
Conductive liquid, slurry |
| Medium Temperature: |
E grade∠60°C.H grade∠180°C |
| Conductivity: |
≥5 u S/cm |
| Accuracy: |
±0.25% . ±0.5% |
| Repeatability: |
±0.1% . ±0.17% |
| Rated Pressure: |
0.6, 1.0, 1.6, 2.5, 4.0, 6.4 MPa (or specified by customer ) |
| Display : |
Instantaneous flowrate, total flow, velocity, flowrate percentage with back light |
| Signal Output: |
4-20mA current output, pulse output, pulse output, RS-485, Hart. |
| Power Supply: |
AC:85V~265V, DC:18V~38V |
| Converter Type: |
Integral, remote |
| Protection Grade: |
IP67/IP68 |
| Explosion Proof: |
Ex deibmb IIC T3~6 |
| Velocity: |
0.05~12m/s ( 0.1~15m/s as required ) |
| Liner: |
PU(DN25~DN500)/ F4(PTFE) (DN25~DN1600)/
F46(FEP) (DN10~DN200)/ PFA (DN10~30)
|
| Flowing Direction: |
Forward, Reverse |
| Electrode Material: |
316L, Pt, Ta, Ti, HB, HC, WC |
| Electrode Number: |
3~6 pcs |
| Flange Material: |
SS/CS |
| Alarm (normal open): |
Empty, excitation, upper/lower limit |
| Ambient: |
Temperature: -30~+60°C, Humidity: <90% |
| Protocal: |
RS-485/ Hart |
Competitive Advantage:
- Ambient temperature: -20~60;
- Relative humidity: ≤85%RH;
- Atmospheric pressure: 86KPa~106KPa;
- Applicable Fluid: electrically conducting liquid;
- Fluid temperature:-25~ +65
- Electrical conductivity: 5us/cm.
