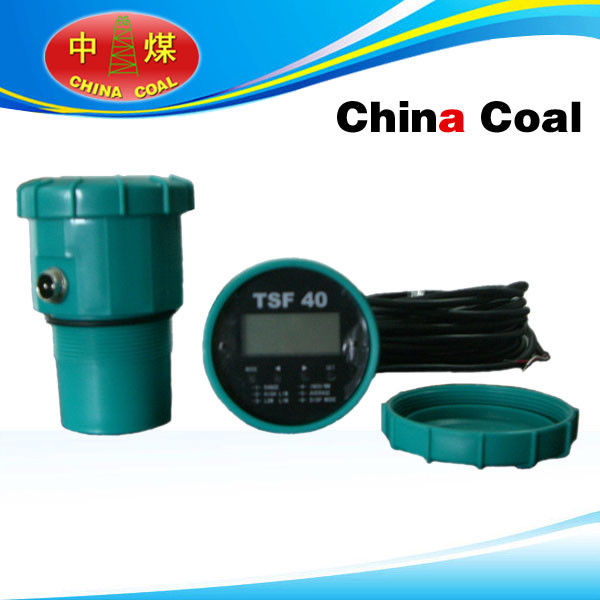

Ultrasonic level meter

Ultrasonic level meter introduction

Ultrasonic level meter is microprocessor controlled digital level meter.From pulse ultrasonic sensor in measuring, the sound waves reflected an object's surface by the same sensor after receiving, converted to electrical signals, and by sound waves between transmitting and receiving time to calculate the sensor to the distance of the object to be tested, applicable to the sewage, acid and alkali, alcohol, beverage, block solid and so on the many kinds of environment.

Ultrasonic level meter feature

Non-contact continuous measurement of liquid and material, the solid material level, applicable to the outdoor, installation is simple and easy to maintain, and liquid crystal display (LCD), blue backlight for 24-hour monitoring, automatic temperature compensation, a variety of optional output mode, can form a complete set of volume calculation, open channel flow, liquid level measurement. Ultrasonic liquid level gauge is widely used in petroleum, chemical industry, water treatment, water conservancy, food, the food industry such as level measurement, with a safe, clean, high precision, long service life, stable and reliable, easy installation and maintenance, easy reading, etc.

Ultrasonic level meter technical parameter

Measurements：3m、5m、8m、10m、12m、15m、20m、25m、30m

Blind area range: 0.3 ~ 0.6 m

Accuracy：±0.25～0. 5℅

Operating temperature:－25～65℃(beyond this range should be special instructions)

Power supply: DC24V or AC220V

Output signals: RS485 (optional), relay output, analog 4-20 ma signal remote transmission of up to 1000 meters.

Protection class: IP65 Sensor IP68 converter

Shell Material: Polypropylene, PTEE (anti-corrosion)

Connection: threaded flange (optional)
