Portable Ultrasonic Thickness Gauge 0.8mm - 225mm Pulse Echo With Dual Probe

Name: Portable Ultrasonic Thickness Gauge 0.8mm - 225mm Pulse Echo With Dual Probe
Brand: SADT
SKU: SA40EZ
Rating: 4.7 (142 reviews)

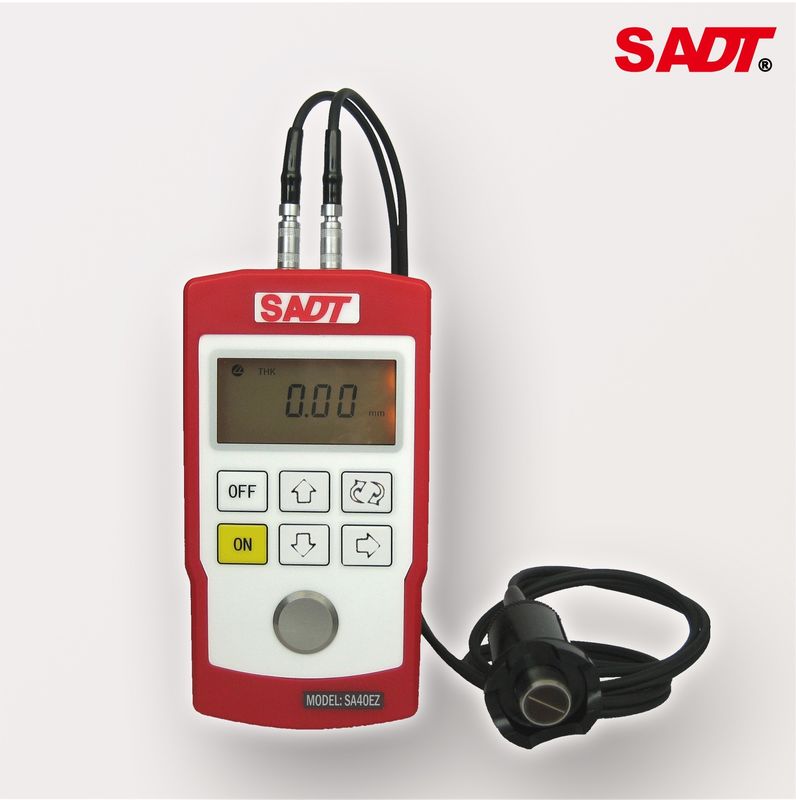

Large Image : Portable Ultrasonic Thickness Gauge 0.8mm - 225mm Pulse Echo With Dual Probe

Product Details:

Place of Origin:	Beijing
Brand Name:	SADT
Certification:	ＣＥ　ＩＳＯ９００１
Model Number:	SA40EZ

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD100-300/Pcs
Packaging Details:	Standard package
Delivery Time:	Within 3 days after receipt of advanced payment
Payment Terms:	T/T in advance, Western Union, PAYPAL
Supply Ability:	50pcs/week

Contact Now

Detailed Product Description

Language:	English	Measuring Range:	0.7~300.0mm In Steel With PT-5 Probe
Resolution:	0.1mm	Display:	4 Digits LCD
Accuracy:	0.7~99.9mm ±(0.5%+0.1)mm 100.0~300.0mm ±(1%+1)mm	Unit:	Mm
Velocity:	1000~9999m/s	Coupling Indicator:	Yes
Working Environment:	0~40oC, 20~90%RH	Power Supply:	AA Battery X 2
Highlight:	portable ultrasonic thickness gauge , digital ultrasonic thickness gauge

Portable Ultrasonic Thickness Gauge 0.7mm - 300mm Pulse Echo With Dual Probe

SA40EZ is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our

intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel,

aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc. It is quite versatile model which can

be easily equipped with the low & high frequency probes as well as a high temperature probe.

Specifications:

Display	4 digits LCD
Backlight	Yes
Measuring range	0.70~300.0mm in steel with PT-5 probe
Resolution	0.1mm
Accuracy	0.7~99.9mm ±(0.5%+0.1)mm 100.0~300.0mm ±(1%+1)mm
Unit	mm
Velocity	1000~9999m/s
Coupling indicator	Yes
Calibration	Auto
Memory
Low battery indicator	Yes
Working environment	0~40°C, 20~90%RH
Power off	Auto
Power supply	AA battery x 2
Dimension (mm)	127x66x29
Net weight (g)	240
Standard probe	PT-5
Optional probes	XT-5 / GT-5 / CT2.5

Optional Probes

PT-5 5MHZ Dia.Φ10mm For standard applications
XT-5 5MHZ Dia.Φ7mm 　 For tubes with small diameter
GT-5 5MHZ Dia.Φ12mm 　For high temperature up to 400℃
CT-2.5 2.5MHZ Dia.Φ12mm 　For unfavorable attenuation

Standard Package:

SA40EZ main unit x1

Standard 5MHz probe PT-5 with probe holder x1

Built-in calibration block x1

Coupling paste for normal temperature x1

Test certificate x1

Operation manual x1

Carrying case x1

_01 _02 _03 _04 _05 _06 _07 _08
