Digital Ultrasonic Wall Thickness Gauge 4 Digits LCD With Backlight

Name: Digital Ultrasonic Wall Thickness Gauge 4 Digits LCD With Backlight
Brand: SADT
SKU: SA40
Rating: 4.6 (150 reviews)

Large Image : Digital Ultrasonic Wall Thickness Gauge 4 Digits LCD With Backlight

Product Details:

Place of Origin:	Beijing
Brand Name:	SADT
Certification:	ＣＥ　ＩＳＯ９００１
Model Number:	SA40

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD200-400/Pcs
Packaging Details:	Standard package
Delivery Time:	Within 3 days after receiving payment
Payment Terms:	T/T in advance, Western Union
Supply Ability:	50pcs/week

Contact Now

Detailed Product Description

Testing Range:	0.70-300mm	Memory:	400
Key Words:	Ultrasonic Wall Thickness Gauge	Display:	4 Digits LCD
Measuring Range:	0.7~300.0mm In Steel With PT-5 Probe	Accuracy:	0.70~9.99mm ±0.05mm / 10.00~99.99mm ±(0.5%+0.01)mm 100.0~300.0 ±(1%+0.1)mm
Memory:	400 Data	Power Supply:	AA Battery X 2
Standard Probe:	PT-5
Highlight:	Through coating thickness gauge , digital ultrasonic thickness gauge

Digital Ultrasonic Wall Thickness Gauge 4 Digits Lcd With Backlight

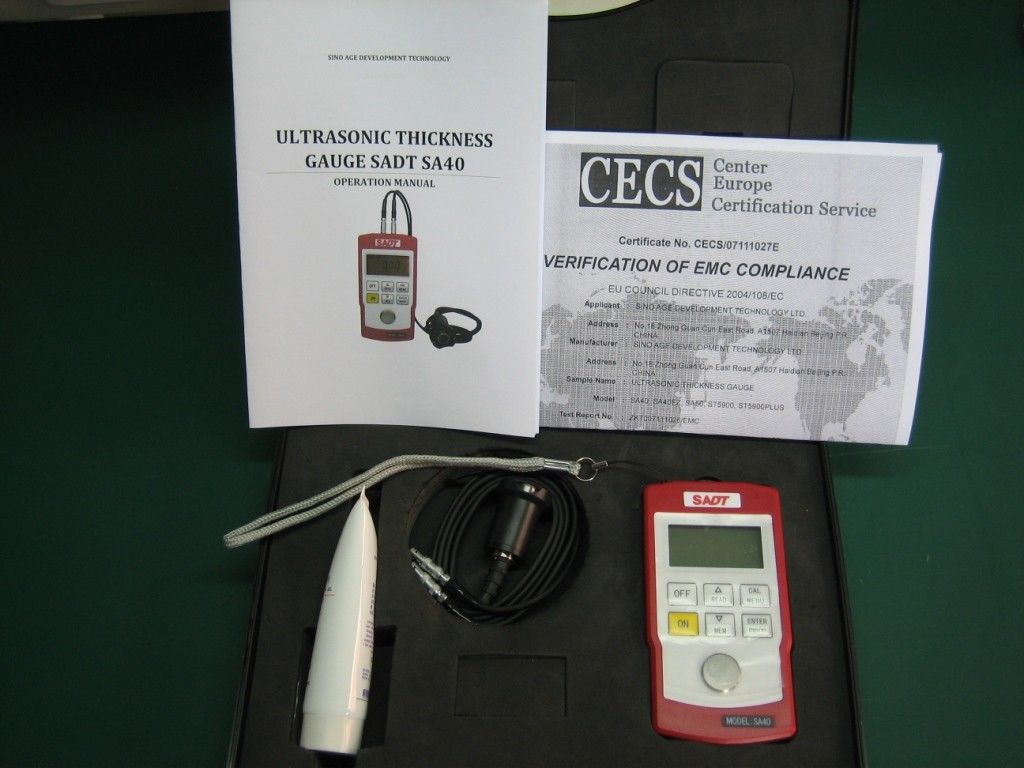

SA40 is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc. It is quite versatile model which can be easily equipped with the low & high frequency probes as well as a high temperature probe.

Details:

Specifications:

Technique: pulse echo with dual probe
Display: 4 digits LCD with backlight
Measuring range: 0.7 to 300.0mm
Resolution : 0.01mm@0.8-99.99mm, 0.1mm@100.0-300.0mm
Velocity range: 500-9999m/sec.
Display circle: 1 sec.
Coupling indication
Memory: 400 data can be stored and re-readable
Units: mm or inch
Low battery indicator on LCD
Auto shut-off: after 5 min. of non-use
Power: 2 ea. 1.5V AA alkaline cells
Operating temperature: 0-40°C
Operating humidity: 20-90%RH
Weight: 240g

PT-5        5MHZ         Dia.Φ10mm       For standard applications
XT-5        5MHZ         Dia.Φ7mm        For tubes with small diameter
GT-5        5MHZ         Dia.Φ12mm       For high temperature up to 400℃
