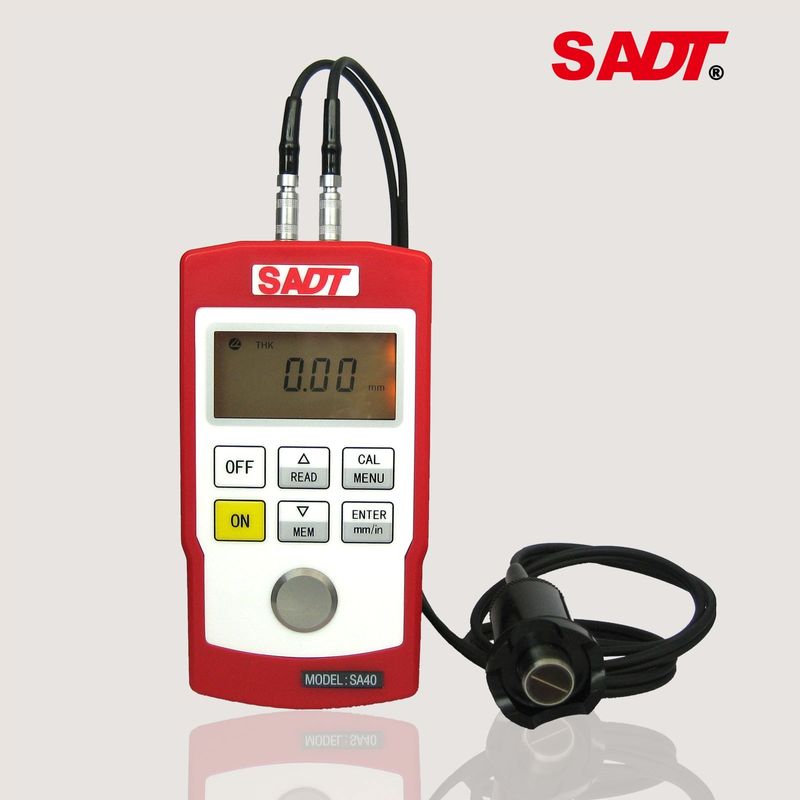

Coupling Indication Ultrasonic Wall Thickness Gauge Portable , High Resolution

Name: Coupling Indication Ultrasonic Wall Thickness Gauge Portable , High Resolution
Brand: SADT
SKU: SA40
Rating: 4.5 (186 reviews)

Large Image : Coupling Indication Ultrasonic Wall Thickness Gauge Portable , High Resolution

Product Details:

Place of Origin:	Beijing
Brand Name:	SADT
Certification:	ＣＥ　ＩＳＯ９００１
Model Number:	SA40

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD200-400/Pcs
Packaging Details:	Standard package
Delivery Time:	Within 3 days after receiving payment
Payment Terms:	T/T in advance, Western Union
Supply Ability:	50pcs/week

Contact Now

Detailed Product Description

Display:	4 Digits LCD	Backlight:	Yes
Measuring Range:	0.7~300.0mm In Steel With PT-5 Probe	Resolution:	0.01mm@0.70~99.99mm, 0.1mm@100.0~300.0mm
Accuracy:	0.70~9.99mm ±0.05mm / 10.00~99.99mm ±(0.5%+0.01)mm 100.0~300.0 ±(1%+0.1)mm	Velocity:	1000~9999m/s
Memory:	400 Data	Power Supply:	AA Battery X 2
Warranty:	1 Year
Highlight:	Through coating thickness gauge , digital ultrasonic thickness gauge

Coupling Indication Ultrasonic Wall Thickness Gauge Portable , High Resolution

SA40 is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc. It is quite versatile model which can be easily equipped with the low & high frequency probes as well as a high temperature probe.

Details:

Specifications:

Technique: pulse echo with dual probe
Display: 4 digits LCD with backlight
Measuring range: 0.8 to 225.0mm
Resolution : 0.01mm@0.8-99.99mm, 0.1mm@100.0-225.0mm
Velocity range: 500-9999m/sec.
Display circle: 1 sec.
Coupling indication
Memory: 400 data can be stored and re-readable
Units: mm or inch
Low battery indicator on LCD
Auto shut-off: after 5 min. of non-use
Power: 2 ea. 1.5V AA alkaline cells
Operating temperature: 0-40°C
Operating humidity: 20-90%RH
Weight: 240g

PT-5        5MHZ         Dia.Φ10mm       For standard applications
XT-5        5MHZ         Dia.Φ7mm        For tubes with small diameter
GT-5        5MHZ         Dia.Φ12mm       For high temperature up to 400℃
