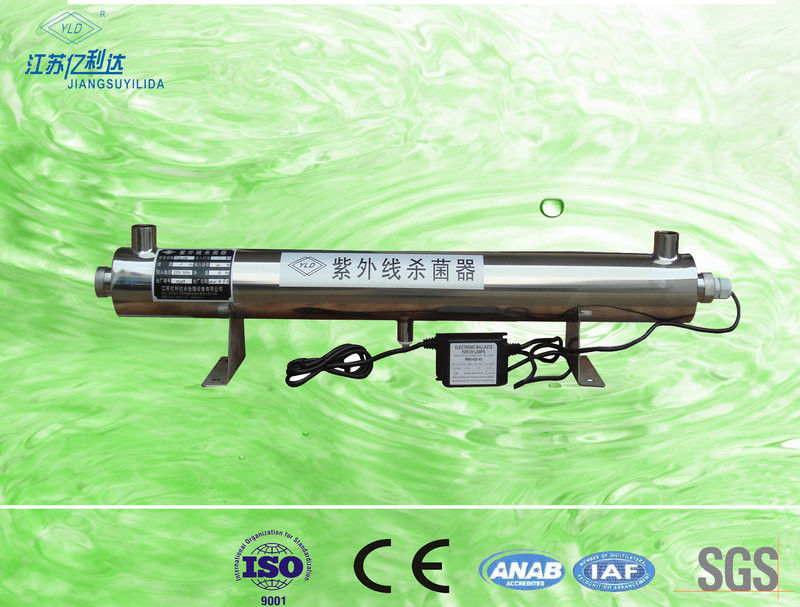

75GPM SUS 304 Aquarium UV Water Sterilizer Without Secondary Pollution



No Secondary Pollution 75GPM SUS 304 UV Sterilizer For Aquarium





Specifications:



Model	Amount of disinfectant	Power (W)	Incoming and outcoming water pipes (Nominal/ British system)	System pressure resistance (Kg/cm²)	UV light fault Alarm	Dimension of the reactor (cm) L×W×H	Dimension of the control cabinet (cm)	Anchor screws	Transport weight(Kg)
YLCn-005	0.3	16	1/2″	6	Has	30×6×11			5
YLCn-008	1	25	1/2″	6	Has	47×6.3×11			10
YLCn-050	2	40	1″	6	Has	100×9×20	Φ8.9×25 (d×L)	69×4×Φ1	25
YLCn-150	6	80	1+1/4″	6	Has	100×11×23		69×4×Φ1	30
YLCn-200	8	120	1+1/2″	6	Has	100×15.9×30	Φ8.9×45 (d×L)	69×7×Φ1	35
YLCn-300	12	160	2″	6	Has	100×15.9×32		69×7×Φ1	40
YLC-050	2	40	DN25/1″	6	Has	100×8.9×30	25×30×12 (W×H×D)	60×4×Φ1	45
YLC-150	6	80	DN32/11/4″	6	Has	100×10.8×30		60×4×Φ1	50
YLC-200	8	120	DN40/11/2″	6	Has	100×15.9×40		60×7×Φ1	60
YLC-300	12	160	DN50/2″	6	Has	100×15.9×40		60×7×Φ1	70
YLC-360	15	200	DN65/21/2″	6	Has	100×15.9×40		60×7×Φ1	120
YLC-500	20	240	DN65/21/2″	6	Has	100×21.9×50		60×11×Φ1.2	130
YLC-600	25	280	DN80/3″	6	Has	100×21.9×50		60×11×Φ1.2	140
YLC-700	30	320	DN100/4″	6	Has	100×21.9×50		60×11×Φ1.2	150
YLC-1000	40	360	DN100/4″	6	Has	100×21.9×50		60×11×Φ1.2	160
YLC-1200	50	400	DN125/5″	6	Has	100×21.9×50		60×11×Φ1.2	180
YLC-1500	60	420	DN150/6″	6	Has	170×27.3×57		120×16×Φ1.4	210
YLC-2000	80	560	DN150/6″	6	Has	170×27.3×57		120×16×Φ1.4	220
YLC-2500	100	700	DN150/6″	6	Has	170×27.3×57	60×128×30 (W×H×D)	120×16×Φ1.4	275
YLC-3000	125	840	DN150/6″	6	Has	170×27.3×57		120×16×Φ1.4	300
YLC-4000	150	1120	DN200/8″	6	Has	173×32.5×65		120×20×Φ1.6	325
YLC-5000	200	1400	DN200/8″	6	Has	173×37.7×72		120×22×Φ1.6	350
YLC-7000	300	2100	DN250/10″	6	Has	175×42.6×80		120×24×Φ2.0	400
YLC-10K	400	2520	DN250/10″	6	Has	176×52.9×95	60×150×40 (W×H×D)	120×22×Φ2.2	475
YLC-15K	600	3080	DN300/12″	6	Has	176×78×110		120×32×Φ2.4	600
YLC-20K	800	3920	DN350/14″	6	Has	Designated	Designated	Designated	Designated
YLC-25K	1000	4760	DN350/14″	6	Has	Designated	Designated	Designated	Designated





















































































Description:



Advantages of Modern UV C Disinfection)

The UV C Disinfection Technology has been widely accepted by the world for its superior effect in disinfection on cell viruses and other Factors to be Considered Liquid chlorine disinfection Chlorine dioxide disinfection Ozone disinfection LW disinfection pathogenic agents. UVC water disinfection technology has the following obvious advantages.



High—efficiency sterilization

Sterilization of cell viruses with UV C is generally within one second. In comparison, the traditional UV and Cl and Ozone Methods takes 20 min to one hour to match the effect of UVC.



No secondary pollution

As the UV-c Technology can be controlled within the scope of killing the bacteria or viruses only and it is unnecessary to add any chemicals, it Operation complexity Simple to middle grade Simple to middle grade will not cause the secondary pollution to the water body and the surround environment. Meanwhile, it will not change any component of the water.



It makes continuous mass sterilization possible.

The modern UV-C disinfection equipment can work 24 hours a day and 365 days a year. Except for the general maintenance within the fixed time, the optimum operation condition is the 24-hour continuous operation.



Operation and maintenance is simple and easy and of low cost.

With the improvement of UV-C core technology, the UV-C disinfection technology is not only the means of the highest disinfection rate of all the disinfection methods but also the simplest and easiest in operation and maintenance and of the lowest cost, reaching RMB 0.004 Yuan/T of water. Therefore, cost performance ratio is the highest of all the disinfection technologies. It has the high efficiency advantage superior to other sterilization technologies but also is the lowest in cost and expenses for operation and maintenance.



Safe and Reliable Operation

In terms of the traditional sterilization technology, like the methods of using the chloride or ozone, the disinfectant itself is highly toxic, flammable and explosive. Application of these substances causes latent threat to the site operators, the surrounding environment and the nearby residents. The modern ultraviolet disinfection system, however, does not bear such potential risks.





Applications:



Reclaimed water recycling

Devices for secondary water supply of the living community

Disinfection of the treated municipal sewer

Disinfection of water for aquiculture and processing

Disinfection of purified water for shellfish species

Disinfection of water in aquaria and water tanks

Disinfection of tap water, purified water and mineral water

Disinfection of water for the food and beverage industries_

Disinfection of water for such water recreational facilities as swimming poor, etc. Disinfection of drinking water for residential, office and restaurant buildings, etc. Disinfection of bacteria-free water for pharmacy, cosmetics and other such manufacturing industries

Disinfection of water for hospitals Water for military bases, ships and vessels and submarine vessels as well as field activities

Disinfection of water for agricultural irrigation

Disinfection of water for municipal landscapes

Disinfection of water for the water treatment system of central air conditioning in commercial buildings

Disinfection of cooling water for various large power stations

Disinfection of drinking water for commercial planes and large passenger planes Disinfection of water for large poultry and livestock farms

Disinfection of water for small domestic drinking machine

Greenhouse seedling culture Aquaculture

Water for municipal landscapes

Disinfection of water for hospitals

Food and beverage





FAQ:



01. What is the source of raw water to be treated?

-- is it underground water or well water? or river water ,other source?

02. What is the capacity(m3/hour) you required for this sterilizer?

-- most IMPORTANT requirement.

03. What will the treated water be used for?

--for human drinking or industry purpose?

04. What is the power supply in your country?

   220V/60Hz or other?



Accessories show:

UV lamp:

Quartz socket tuble:

Electronic ballast:

Other accessories:
