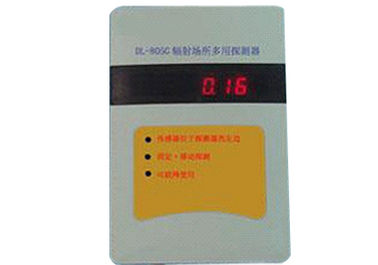

Radiation area monitor DL805-G Of Ray Flaw Detector

Radiation area monitor Field Radiation Meter Gamma radiometer DL805-G

DL805-G radiation multi-purpose monitor is a kind of intelligent instrument which is equipped with a built-in high sensitivity radiation detector. Its microprocessor can process data with high-speed. And the LED can display data clearly and visibly. It can set upper and lower limit alarm threshold. And has the sound and light alarm. The instrument can not only be used independently but also used with the host produced by our company and formed a network. Switch power and batteries can supply the power of the instrument. It is a an ideal instrument used for testing the dose rate of gamma and Alfa in an environmental laboratory, irradiation room, nuclear medicine, molecular biology, radioactive chemistry, nuclear material storage and commodity inspection .

Features

1,   High resolution, quick response

2,   LED display

3,  Sound and light alarm

4,   Alarm setting for upper and lower value

5,   Fault alarm of probe

6,  Widepower range:DC 6~40V

7,   Alternative application of fixed area and mobile area

8,   Optional equipped with tripod

9,  485 industry circuit connector equipped inside, can be used along and used together with various monitor

Technical info

1. Measuring range: 0. 1μSv/h～150mSv/h

2. Response time: measured with a versatile method according to the ray strength. The response time radiological defense warning is less than     1 second.

3. The relative error: relative basic error is 10% or less in the range of measurement

4. energy response time: 40Kev～3Mev

5. Operating environment: temperature: -10℃～+50℃,

Relative humidity: ≤98％( below 40 Celsius)

6. The alarm threshold of this machine is already set; you don't need to reset it.

Lower alarm threshold: 0. 00μSv/h

Upper alarm threshold: 2. 50μSv/h

CRC Check Principle

Optional Calibration Certificase from third lab:
