SS 316 - (Wst 1.4401) Sheathed Pt100 Thermometer with Compensating Cable

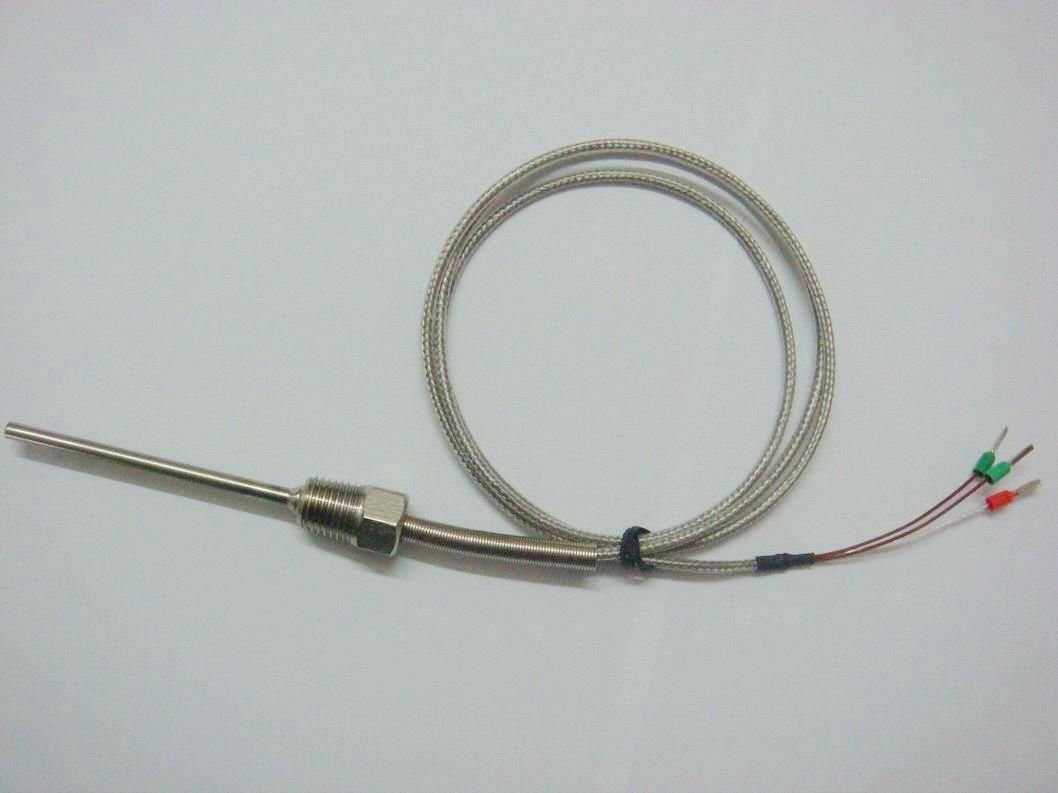

Large Image : SS 316 - (Wst 1.4401) Sheathed Pt100 Thermometer with Compensating Cable

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	WRET-01

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	contact
Packaging Details:	Carton box
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	500PCS / month

Contact Now

Detailed Product Description

Highlight:

s type thermocouples

high temperature thermocouple

SS 316 - (Wst 1.4401) Sheathed Pt100 Thermometer with Compensating Cable

1.Pt100 Thermal Resistance
2.Probe diameter 3 mm
3.length:50mm
4.Heraeus thin film elment
5.SS braid Cable

I.Miniature Thermal Resistance

II.Sheath:

Construction	Closed-end tube
Material	SS 316 - (Wst 1.4401)
Diameter	3 mm
Length	50 mm

Lead Wire

insulated
flexible copper wire, armoured
with outer
jacket 240 °C

Sensor

Accuracy	According IEC 751 class B
Connection	3 wire system ( Optional 4 wire system )
Range	-200 / + 240 °C

pt100, temperature sensor with plain tube, Pt100 sensor

1. temperature range: -200 C to +420 C
2. terminal with plug , easy to use with thermometer
3. diameter 4 mm / 5 mm / 6mm , probe length can be 20mm to 1000 mm , length of wire 10mm to 10000mm .
4.Probe is protected by ptfe tube.
So it can applied in corrosion and water environment.
5.application to test the temperature of hole
