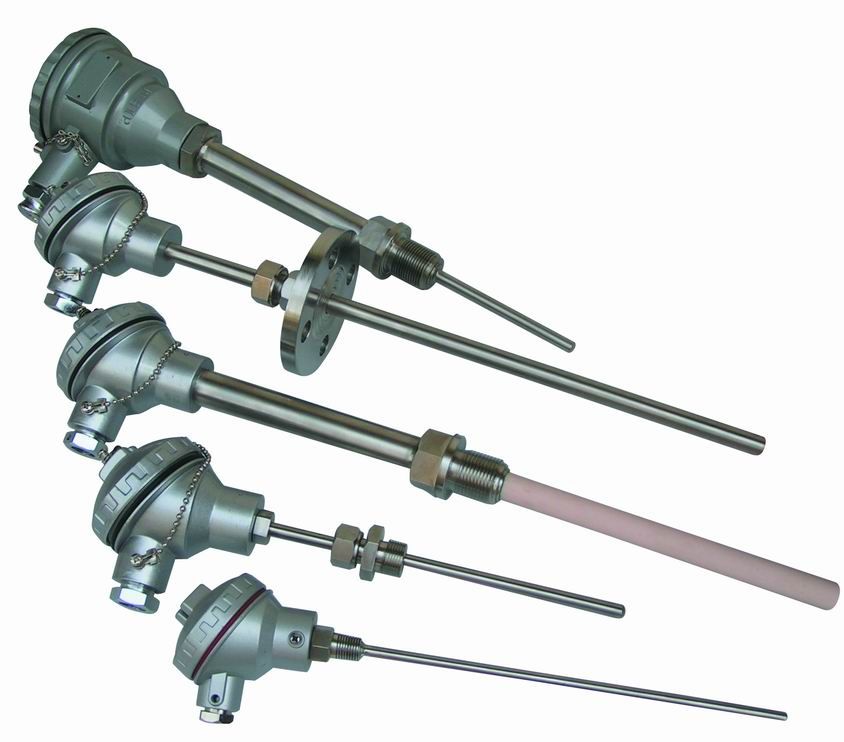

WZP-120 130 121 131 No fixed assembly thermal resistance, platinum thermocouples, PT100 RTD
WZC-120 130 121 131 No fixed assembly thermal resistance, Copper thermal resistance, CU50 thermal resistance
WZP-220 230 221 231 Screw assembly thermal resistance, platinum thermocouples, PT100 RTD
WZC-220 230 221 231 Screw assembly thermal resistance, Copper thermal resistance, CU50 thermal resistance
WZP-320 330 321 330 Flanges fabricated thermal resistance, platinum thermocouples, PT100 RTD
WZC-320 330 321 330 Flanges fabricated thermal resistance, Copper thermal resistance, CU50 thermal resistance
WZP-420 430 421 431 Mounting flange assembly thermal resistance, platinum thermocouples, PT100 RTD
WZC-420 430 421 431 Mounting flange assembly thermal resistance, Copper thermal resistance, CU50 thermal resistance
WZP-620 630 621 631 Thermal resistance of the fixed cone assembly, platinum thermocouples, PT100 RTD
WZC-620 630 621 631 Thermal resistance of the fixed cone assembly, Copper thermal resistance, CU50 thermal resistance
WZP-140 141 240 241 440 441 Explosion-proof thermal resistance, platinum thermocouples, PT100 RTD
WZP-269 Platinum RTD, PT100 RTD
WZC-269 Copper thermal resistance, CU50 thermal resistance
WZP-270 Platinum RTD, PT100 RTDWZC-270 Copper thermal resistance, CU50 thermal resistance
WZP-280 Small thermal resistance junction, Platinum RTD, PT100 RTD
WZC-280 Small thermal resistance junction, Copper thermal resistance, CU50 thermal resistance
WZP-267 Platinum RTD, PT100 RTDWZC-267 Copper thermal resistance, CU50 thermal resistance
WZP-200 Platinum RTD, PT100 RTDWZC-200 Copper thermal resistance, CU50 thermal resistance
WZP-260 Platinum RTD, PT100 RTDWZC-260 Copper thermal resistance, CU50 thermal resistance
Fabricated RTD, fabricated thermal resistance, platinum RTD, platinum thermal resistance, PT100 thermal resistance, PT100 RTD, thermal resistance of copper, CU50 thermal resistance, junction box of small thermal resistance, thermal resistance elements, temperature sensors
|
Thermal resistance Model Description
|
|
W Z □ □ -□ □ □
|
|
a b c d e f g
|
|
a. Temperature Instrumentation
|
|
b. Thermal resistance
|
|
c. Thermal resistance Instrumentation
|
|
P: Platinum RTD
|
|
C: Copper thermal resistance
|
|
d. 2: Two-core Thermal resistance
|
|
e. Mounting form:
|
|
1: No fixtures
|
|
2: Fixed thread
|
|
3: Activities flange
|
|
4: Fixed flange
|
|
6: Screw protection tube cone
|
|
f. Junction box in the form:
|
|
1: No junction box
|
|
2: Splash type
|
|
3: Waterproof type
|
|
4: Explosion-proof type
|
|
Other forms of unified design
|
|
Other outlets in the form
|
|
g. Design No:
|
|
0: Φ16mm Stainless steel protection tube
|
|
1: Φ12mm Stainless steel protection tube
|
|
Other specifications
|
