Digital Ultrasonic Flaw Detector Negative square wave pulse adjustable

Large Image : Digital Ultrasonic Flaw Detector Negative square wave pulse adjustable

Product Details:

Place of Origin:	Beijing
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	TOFD400
Interface:	USB, LAN, SVGA output interface
Touch screen:	high-brightness high-resolution true color LCD touch screen
Scan mode:	with A scan, B scan, D-scan and TOFD imaging capabilities

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	20000-28000USD
Packaging Details:	Standard export package
Delivery Time:	1-4days
Payment Terms:	T/T, Paypal, Western Union
Supply Ability:	500pcs per month

Contact Now

Detailed Product Description

Screen:	Touch Screen	Pulse Edge:	<10ns
Pulse Width:	30~1000ns Continuously Adjustable	Waveform Display:	Radio-wave, Full Wave, Positive Half-wave, Negative Half-wave
Imaging Mode:	According To The Instrument Settings And Scanning Mode Display B Sweep, D Sweep, P Sweep, TOFD Imaging
Highlight:	ndt flaw detectors , Ultrasonic flaw meter

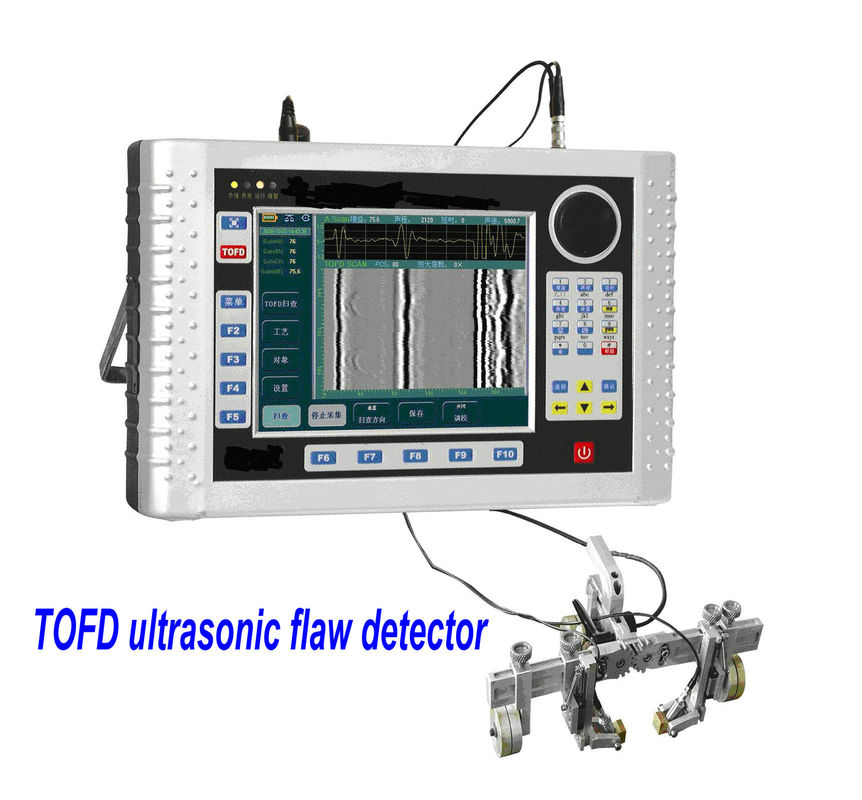

TOFD-400 Ultrasonic Flaw Detector,TOFD technique is to use the work of a new ultrasonic non-destructive testing equipment. It is the high rate of detection of defects in quantitative high positioning accuracy, detection is simple and quick detection efficiency.

With intelligence operations, "one button TOFD" scanning to enable beginners to quickly master, unique touch-screen controls, buttons and the mouse can be used simultaneously, Shuttle controls can be a shuttle in the end, the operation is extremely simple, is the most compact "TOFD" flaw detector, including the battery weighs only 2.25 kg.

Main Features:
  1. "One button TOFD" scanning, so that TOFD testing more easier.
2. Unique touch-screen controls, buttons and the mouse can be used simultaneously, Shuttle controls can be a shuttle in the end, the operation is extremely simple.
  3. The most compact "TOFD" flaw detector, weighing only 2.25 kg with battery
4. Real-time help tips, ultrasonic flaw detection wave diffraction to solve the traditional single-scan detection limits of the region and non-intuitive.
5. high-brightness high-resolution true color LCD touch screen.
  6. USB, LAN, SVGA output interface.
  7. Built-in probe position encoder.
  8. large-capacity data storage space.
  9. with A scan, B scan, D-scan and TOFD imaging capabilities.
  10. Real-time A-scan waveform display debugging the instrument is more fast and accurate.
  11. A scan waveform and B, D scanning image synchronized display, so that scanning is more intuitive.
  12. This machine scanning browsing records, and can playback A scan waveform.
13. Defect size, location and type of accurate analysis.
  14. Manually configure the user-friendly and efficient scanning frame, portable scanning devices instead of manually scanning, detection faster and more accurate.

Main Parameters:

Pulse type	Negative square wave pulse(adjustable)
Pulse edge	<10ns
Pulse width	30~1000ns continuously adjustable
Repetition frequency	100～1000Hz adjustable
Detection mode	hardware detection
sampling frequency	100MHz
Frequency band width	0.5~5MHz,2~10MHz,4~15MHz,0.5~20MHz(broadband)
Waveform display	radio-wave, full wave, positive half-wave, negative half-wave
Sound Velocity Range	300～20000m/s
Sound range	5～200μs
Delay range	0～200μs
Trigger Mode	encoder trigger(maximum resolution 0.25mm),time-triggered(Maximum Resolution force 5ms)
Equivalent Input Noise	40×10^-9 V/ √Hz
Attenuation Accuracy	< ±1dB/20dB
After the transmit pulse blind	< 2ns
Imaging mode	according to the instrument settings and scanning mode display B sweep, D sweep, P sweep, TOFD imaging
Record method	Complete raw data recording method records (per period "= 5 points)
Scan length	longest single-200m, each piece of 2m can be saved 200pcs
Off-line data analysis	recovery and playback scan A-scan waveforms recorded Defect size and contour Thickness / amplitude data statistical analysis
Data report	directly printed check sheet, A scan waveform, B scan images, D scan images, TOFD image
Running Memory	1 G
Available Flash	2 G
Output	LAN,VGA,USB2.0
Display	6.5 "True Color Highlight SVGA640 × 480 pixel high-resolution LCD touch screen
Control	touch-screen views, front panel keypad, Shuttle
Compatible external devices	USB, keyboard, mouse, connected via USB or LAN printer, PC, SVGA external display projector
Power	6600mAH lithium-ion battery, working time "six hours, external 19V adapter
Dimensions	257 (W) × 168 (high) × 64 (thickness) mm (with battery)
Weight	2.25 kg (including battery)
